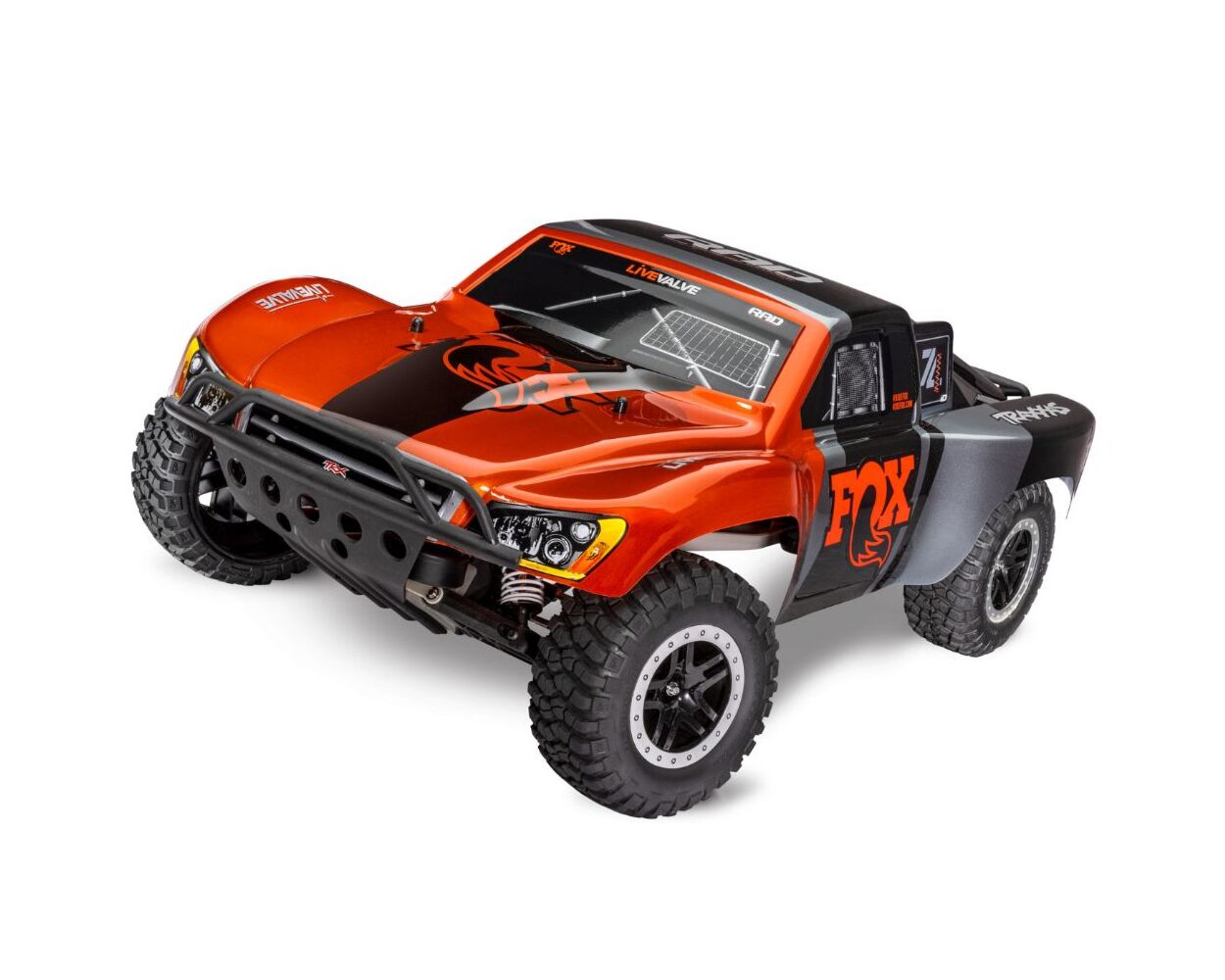

Traxxas Slash VXL Brushless 1/10 RTR Short Course Truck Fox W/Magnum Transmission

Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon brushless power provides screaming 60+mph† speed while the advanced TQi™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

QUICK FEATURES ON SLASH VXL (58076-74)
­
NEW Magnum 272R transmission
Aluminum motor plate
All-metal internal gears
Sealed beveled-gear differential
NEW ProGraphix® paint
Velineon® brushless power system
Traxxas Stability Management TSM®
TQi 2.4 GHz transmitter and receiver
Waterproof electronics
Digital high-torque waterproof steering servo
Precision steel turnbuckles with heavy-duty rod ends
100% Fully assembled and Ready-To-Race®
Battery and charger sold separately

Pro Series Magnum 272R™ Transmission

The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Slash VXL.

Traxxas Stability Management®
Micro Receiver, TQi 2.4 GHz with Traxxas Link and TSM (5-channel) (6533) (three-quarter view)Traxxas Stability Management (TSM) works behind the scenes to help prevent spinouts and loss of control on slippery surfaces. TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the vehicle’s line for faster exit speeds.

100% Fully Assembled and Ready-To-Race®

Slash VXL rolls out of the box Ready-To-Race® with the advanced TQi 2.4 GHz 2-channel radio system and powerful Velineon Brushless Power System.

SLASH VXL (58076-74) SPECS
Length ­ 22.4 inches (568 mm)
Front Track ­ 11.65 inches (296 mm)
Rear Track ­ 11.65 inches (296 mm)
Weight ­ 90.4 ounces (2.56 kg)
Height (overall) ­ 8.43 inches (214 mm)
Wheelbase ­ 13.2 inches (335 mm)
Front Shock Length ­ Long
Rear Shock Length ­ XXLong
Front Tires ­ Slash 2.2 (Pre-Glued with Inserts)
Rear Tires ­ Slash 2.2 (Pre-Glued with Inserts)
Front Wheels ­ 2.2″ Satin or Chrome-Finish
Rear Wheels ­ 2.2″ Satin or Chrome-Finish
Speed Control Type ­ VXL-3s™ Electronic Speed Control
Motor (electric) ­ Velineon® 3500 Brushless
Gear Ratio (internal) ­ 2.72 (final drive: 10.2)
Differential Type ­ Steel Composite Planetary
Gear Pitch ­ 48-Pitch
Transmission ­ Metal Gear Magnum 272™
Steering ­ Bellcrank
Chassis Type ­ Long-wheelbase fiber-composite chassis
Chassis Material ­ Composite Nylon
Center Ground Clearance ­ 3.5 inches (89 mm)
Top Speed ­ 60+mph*
Skill Level ­ 1
Radio System (transmitter) ­ TQi™ 2.4 GHz (2-channel)
Radio System (receiver) ­ Traxxas Stability Management® (6533)
Officially-Licensed Race Replicas ­ Traxxas, Race Edition (Traxxas Blue)
Traxxas, Race Edition (Traxxas Red)
**Battery Tray Dimensions ­ 165 mm x 49.5 mm x 23 mm, 25 mm
Required ­ NiMH or LiPo Battery, Charger, 4 "AA" batteries (transmitter)
**Battery expansion kit available (5827X).

VXL-3s WATERPROOF ESC SPECIFICATIONS
Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: 39 mm x 55 mm x 33 mm
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
BEC Voltage: 6.0 V
BEC Current: 2.5A
Power Wire: 12-Gauge Maxx® Cable
Input Harness Wire: 26 Gauge / 100 mm
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Profile selection: Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:*
50% FWD, 100% BRAKES, 50% REV
Single-Button Setup: Yes, Traxxas EZ-Set®
Battery Input Connector : Traxxas High-Current Connector
Motor Types : Brushless
Ports: RX Input, auxiliary fan
