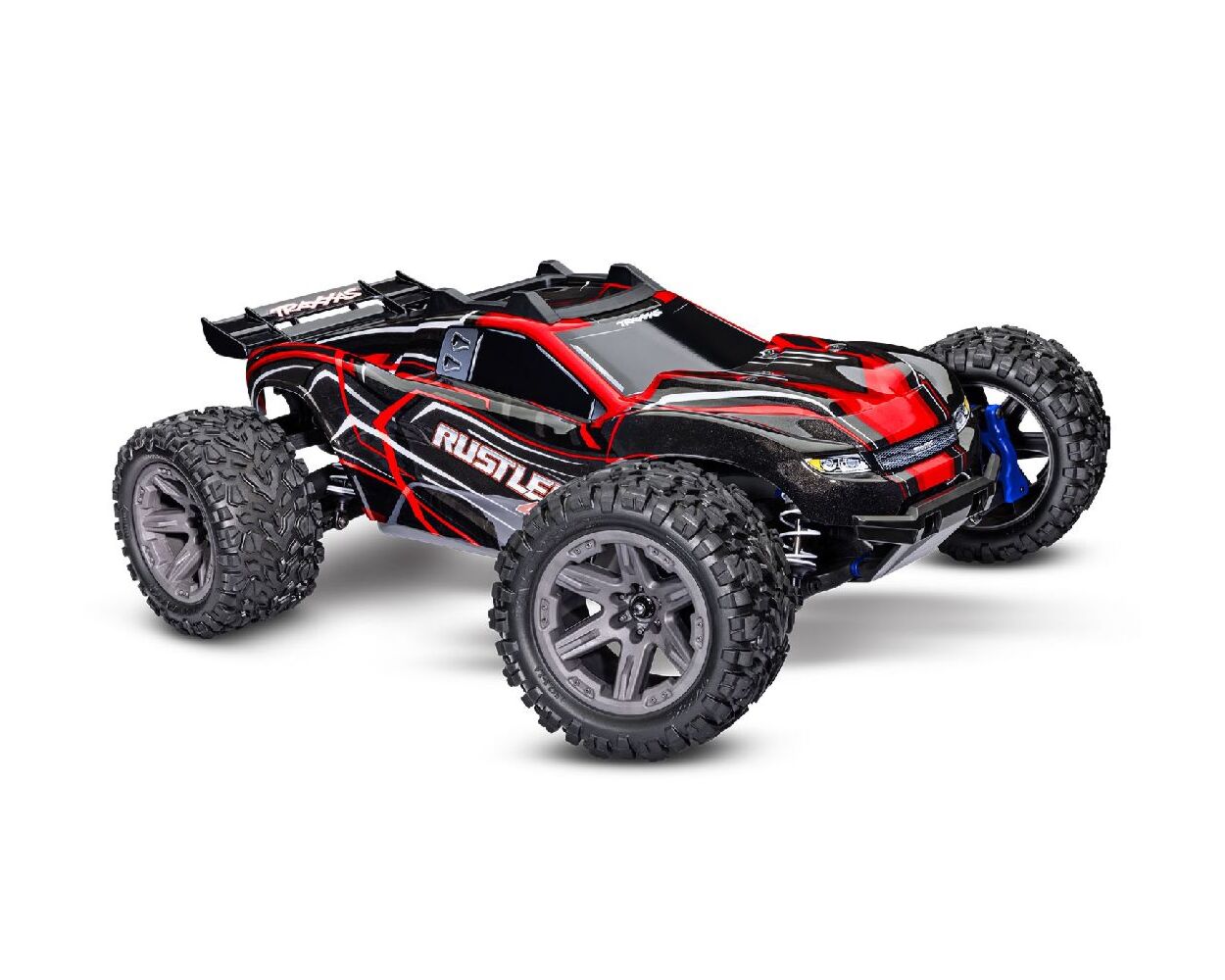

Traxxas Rustler 1/10 4X4 BL-2s Brushless Stadium Truck RTR Red

Rustler 4X4 is the definitive go-to machine for speed, agility, and unstoppable 4WD traction. Beneath the reinforced clipless body, Rustler's chassis sits low and wide for increased stability and sharp handling. Rustler's all-new BL2s brushless power system delivers effortless power for all-day fun with an added boost of torque for 4-wheel burnouts and lightning-fast acceleration. Additionally, Rustler 4X4 now comes standard with Traxxas' Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

Truck Specs
Length: 18 inches (457mm)
Front Track: 12.94 inches (329mm)
Rear Track: 12.94 inches (329mm)
Ground Clearance: 1.10 inches (27mm) (center)
Weight (no battery): 5.13 pounds (2.33kg)
Height (overall): 6.35 inches (161 mm)
Wheelbase: 11.6 inches (295mm)
Shock Length (front): 3.45 inches (88mm) - Long
Shock Length (rear): 3.98 inches (101mm) - XX-Long
Speed Control: BL-2s™ electronic speed control
Motor (electric): BL-2s™ 3300 kV sensorless brushless
Overall Drive Ratio: 12.81:1
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4WD
Steering: Dual-bellcrank with integrated servo saver
Tires: Talon™ EXT with foam inserts
Tire Diameter: 4.5 inches (114mm) (front and rear)
Wheels (front/rear): 2.8″ Gray RXT wheels
Wheel Diameter: 2.8 inches (71mm)
Radio System: TQ™ 2.4GHz (2-Channel)
Servo: Waterproof digital #2056 servo (80oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 162mm (6.38″) x 50mm (1.97″) x 25mm (0.98″)
Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

Motor Specs
Type: BL-2s 3300kV sensorless brushless motor
Weight: 7.51oz (213g)
Length: 3.15 inches (80mm)
Diameter: 1.42 inches (36mm)
Connector Type: Traxxas Quick Connect Motor Plug

ESC Specs
Input Voltage (cells): 6-7 Cells NiMH / 2S LiPo
Case Size: 1.53″ (39mm) x 2.31″ (59mm) x 1.21″ (31mm)
Weight: 3.07oz (87g)
BEC Voltage: 6.0 V
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan

Features List
Clipless Body
Tough front and rear bumpers
Reinforced inner cage
Rugged roof rollover protector
Holds tight for intense action
Quick and easy removal
Extreme Heavy Duty Upgrade Kit Installed
Strengthened C-hubs, axle carriers, and steering blocks
Extreme heavy duty driveshafts
Oversize diameter
6mm axles
Steel wheel hexes
TQ™ 2.4GHz Transmitter
Full-size 2-channel transmitter
All-day comfort with precise long-range control
BL-2s™ Waterproof Electronic Speed Control
Heat sink accepts accessory cooling fan (#3340)
Three Programmable Drive Profiles
Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
LiPo battery packs: 2 cells (7.4 volts)
3300 kV Brushless Motor
Integrated cooling fan
Low-maintenance design
Efficient ball bearings
3300 kV
Steering
Chassis-mounted 2056 servo
Dual bellcrank design with integrated servo saver
Chassis
Modular composite tub design
Secure battery hold-down latch
Low-CG design
High-angle bumpers
Suspension
Heavy duty suspension arms
Oil-filled Ultra Shocks
White powder-coated springs
Drivetrain
Full-time shaft-driven 4-wheel drive
Oil-filled steel gear front and rear differentials
Large 32-pitch spur gear
Wheels and Tires
2.8″ gray RXT wheels
All-terrain Talon™ EXT tires
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

What’s Included
MODEL 67164-4: Rustler 4X4 Brushless: 1/10 scale 4X4 stadium truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ speed control, and clipless painted body. Requires: battery and charger.

What’s In The Box:
Rustler 4X4 with BL-2s ESC and 3300 kV motor
Quick Start Guide
TQ™ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need:
Batteries
Rustler 4X4 requires a single NiMH or LiPo battery. See full list of batteries.

Charger
Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
