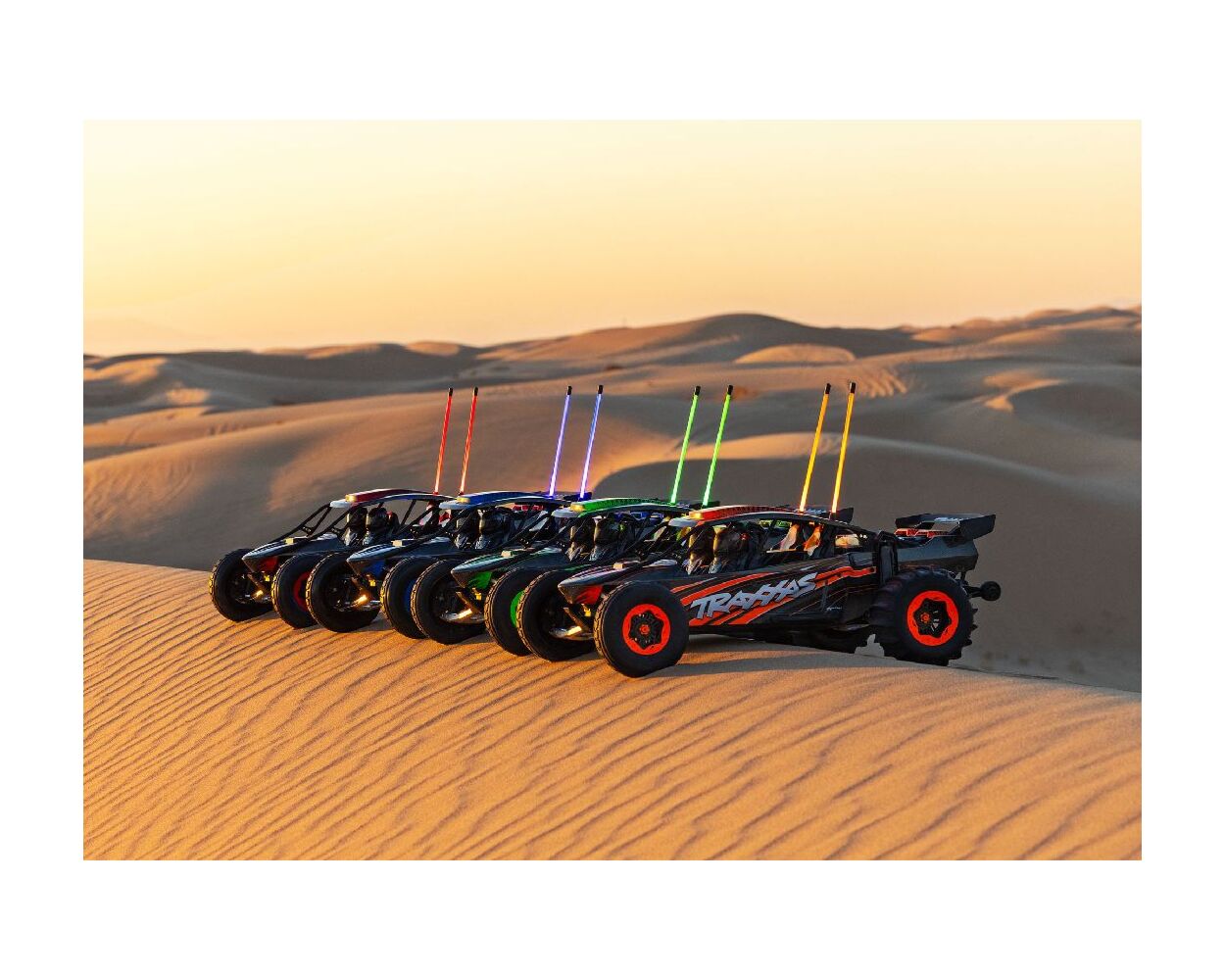

Traxxas Pro-Scale Funco Motorsports Sand Car 2wd RTR

King of the Dunes
Driving a sand car is an adrenaline-fueled thrill ride like nothing else on Earth. Outfitted with 1000+ horsepower engines and trick long-travel suspension systems, sand cars can top 150 mph and wheelie with just a blip of the throttle. The new Traxxas Pro Scale® Sand Car is a 55+ mph replica purpose-built to deliver the same raw excitement and thrill of driving the full-size Funco Motorsports car in dramatic X-Series™ scale.

Key Features
Pro Scale® Replica of the 1000+ hp Funco Motorsports Sand Car
Velineon® VXL-8s™ Brushless Power System
55+ mph Top Speed with Included High Speed Gearing
New Sand Car Addition to the X-Series™ Lineup
High-Speed Belted Sand Paddle Tires for Maximum Forward Bite
All-new Rear-Wheel-Drive System with Ultra-HD Steel Gears
Powerful Front Disc Brakes Combined with Rear Motor Braking
Metal-Gear 2085XL Servo with 25% More Torque
Color-Matched Whip Lights with Flex-Tech™ Mounts
Ultra-Realistic Scale Body and Precision Details
Traxxas Stability Management® for Pro-Level Driving Control
Extended-Length Aluminum GT-Maxx® Shocks with Threaded Bodies
Long-Travel, Independent Suspension with Polished Aluminum-Finish Arms

X-Series Size
Both longer and wider than the legendary X-Maxx®, the Pro Scale Sand Car is the largest member of the X-Series family. This immense size gives the Sand Car incredible scale detail, authentic driving dynamics, and an imposing presence. The Sand Car’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.

Scale Details
Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Pro Scale Sand Car features a full interior with dashboard and driver figures and replica remote-reservoir 3.5″ shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.

Front Disc Brakes
Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.

Belted Paddle Tires
The Pro Scale Sand Car’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.

Internal Tube Frame
A rugged tube frame supports the entire Pro Scale Sand Car body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.

VXL-8s Power System
The Pro Scale Sand Car features Traxxas’ most powerful brushless system, the Velineon® VXL-8s™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Sand Car instantly wheelies until you back off…or run out of desert.

Precision Driveline
With 30+ volts of brushless power going only to the rear wheels, the Pro Scale Sand Car needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

High-Visibility Whip Lights
Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 55+ mph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.

What’s In The Box:
Pro Scale Sand Car Ready-To-Race® model with Traxxas Big Block™ brushless motor
VXL-8s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi™ 2.4 GHz radio system
High visibility whip lights
Wheelie bar
Speed gearing
High quality maintenance tools

What You’ll Need:
LiPo Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (Part 2997).

LiPo Balance Charger with iD®
Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Specs:

Truck:
Length: 32 inches (812 mm)
Width: 21.7 inches (551 mm)
Ground Clearance: 1.98 inches (50 mm)
Weight: 22.06 pounds (10 kg)
Height: 11.1 inches (283 mm) - body
19.6 inches (498 mm) - with whip lights
Wheelbase: 21.4 inches (543 mm)
Shock Length: 5.08 inches (129 mm) (front)
7.13 inches (181 mm) (rear)
Tires (Arrow Pattern, Front): 6.8″ x 2.3″ (173 mm x 58 mm)
Tires (Paddle, Rear): 7.5″ x 4.0″ (191 mm x 102 mm)
Wheels (Front): 3.2″ (82 mm, inner) x 4.9″ (125 mm, outer)
Wheels (Rear): 3.6″ (91 mm, inner) x 4.7″ (120 mm, outer)
Speed Control: Velineon® VXL-8s
Motor (electric): Velineon® 1200XL Brushless
with heat sink and dual fan shrouds
Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)
Differential Type: Sealed, four-gear, limited-slip
Gear Pitch: Module 1.5 (transmission)
Module 1.0 (pinion & spur)
Chassis Structure/Material: Reinforced Nylon Tub
Brake Type: Electronic (rear)
Dual slotted & drilled discs (front)
Drive System: Direct-drive, RWD
Steering: Bellcrank
Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
Steering Servo: 2085XL metal gear (450 oz-in.)
Top Speed: 55+ mph with two 4s LiPo batteries and included speed gearing
Skill Level: 5
Battery Tray: 186 mm x 51 mm x 44 mm
Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)

Motor:
Type: 1275 Kv sensorless brushless
Weight: 665 grams (23.44 ounces)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Connector Type: Traxxas 6.5 mm bullet connectors

Esc:
Input Voltage: 8s LiPo (max 33.6 volts)
Case Size: 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm)
Weight: 215.5 grams (7.60 ounces)
BEC Voltage: 6.0 volts
BEC Current Continuous: 10 amps
BEC Current Peak: 20 amps
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports: RX input, auxiliary fan, accessory port
