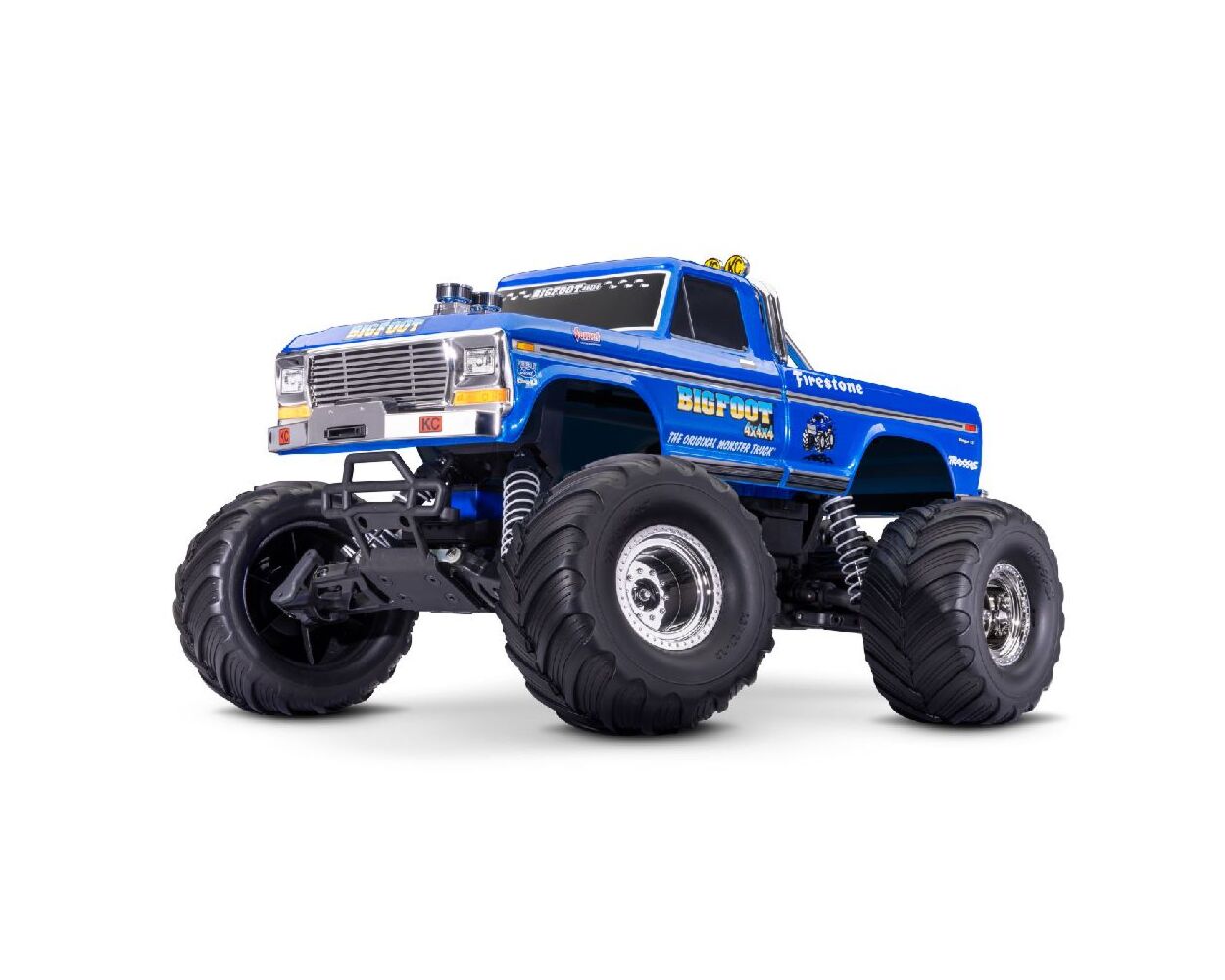

Traxxas 1/10 BIGFOOT No. 1 BL-2S HD Brushless RTR w/ Clipless Body

With its new BL-2s™ brushless power system, BIGFOOT rips non-stop wheelies all the way to its 40+ mph top speed and crushes the competition underneath its towering stance. BIGFOOT is built Traxxas Tough™ with factory-installed Extreme Heavy Duty components to take even the most brutal punishment in stride.

BL-2S BRUSHLESS POWER SYSTEM
BIGFOOT’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.

EXTREME HEAVY DUTY COMPONENTS
Extreme Heavy Duty components come factory-installed on BIGFOOT No. 1 for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for ultimate strength. From HD suspension arms to the upgraded axles, BIGFOOT sets a new standard for durability on your off-road adventures.

CLIPLESS REPLICA BODY
BIGFOOT No. 1 comes Ready-To-Race® with a beautifully detailed clipless replica body. Bright chrome bumpers, side trim, and roll bars stand out against the brilliant blue paint. A chrome front grille, replica KC lights, and dual-carb engine manifold complete the authentic look. Best of all, BIGFOOT’s convenient hidden latching system replaces traditional body clips with clean lines.

Features:
Licensed BIGFOOT® No. 1 Clipless Body
Brilliant blue metallic officially licensed Ford® F-250® Ranger XLT body
Chrome front bumper with replica winch
Chrome grille
Replica high-rise dual-carb intake manifold
Chrome roll bar with replica KC lights
Holds tight for intense action
Quick and easy removal
4-position adjustable wheelie bar
Extreme Heavy Duty Upgrade Components
Strengthened C-hubs, axle carriers, and steering blocks
Extreme heavy duty driveshafts
BL-2s™ Waterproof Electronic Speed Control
Heat sink accepts accessory cooling fan (3340)
Three Programmable Drive Profiles
Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
LiPo battery packs: 2 cells (7.4 volts)
3300 kV Brushless Motor
Integrated cooling fan
Low-maintenance design
Efficient ball bearings
3300 kV
TQ™ 2.4 GHz Transmitter
Full-size 2-channel transmitter
All-day comfort with precise long-range control
Tough Fiber-Composite Monocoque Chassis
Tall 4″ center ground clearance to drive over obstacles
Heavy duty servo saver
Easy Access Battery Compartment
Accepts 6- and 7-cell flat packs and 7-cell hump packs
Accepts many 2s LiPo battery configurations
Suspension
Heavy-duty suspension arms
One-piece camber links
Oil-filled Ultra Shocks™
White powder-coated springs
Steering
Chassis-mounted 2056 servo
Heavy duty servo saver
Transmission
Velineon-ready Magnum 272™ metal-gear transmission
Planetary gear differential with steel ring gear
Sealed gearbox protects the transmission
External gear cover with easy clutch access
Drivetrain
Extreme heavy-duty driveshafts
Torque Control™ slipper clutch
Wheels and Tires
Pre-glued high profile Terra Groove shaved monster truck tires
2.2″ chrome deep dish beadlock-style wheels
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

What’s In The Box:
2WD BIGFOOT monster truck with BL-2s ESC and 3300 kV motor
Quick Start Guide
TQ™ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need:
Batteries
BIGFOOT BL-2s requires a single NiMH or LiPo battery.

Charger
Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Specs:
Length: 18.1 inches (459 mm)
Front Track: 12.75 inches (324 mm)
Rear Track: 12.75 inches (324 mm)
Weight (no battery): 4.08 pounds (1.85 kg)
Height (overall): 9.5 inches (241 mm)
Wheelbase: 10.6 inches (270 mm)
Shock Length (front): 3.45 inches (88 mm) - Long
Shock Length (rear): 3.98 inches (101 mm) - XX-Long
Tires: Terra Groove 2.2″ all terrain
Wheels (front/rear): 2.2″ chrome deep dish
Wheel Diameter: 2.2 inches (71 mm)
Overall Drive Ratio: 12.34:1
Speed Control: BL-2s™ electronic speed control
Motor (electric): BL-2s™ 3300 kV sensorless brushless
Differential Type: Planetary
Gear Pitch: 48
Chassis Structure/Material: Composite modified tub
Drive System: 2WD
Steering: Bellcrank
Radio System: TQ™ 2.4 GHz (2-channel)
Servo: Waterproof 2056 servo (80 oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 165 mm (6.49″) x 48 mm (1.89″) x 28 mm (1.10″)
Required Batteries: 4 “AA” (transmitter), Vehicle

Motor Specs:
Type: BL-2s 3300 kV sensorless brushless motor
Weight: 7.51 ounces (213 g)
Length: 3.15 inches (80 mm)
Diameter: 1.42 inches (36 mm)
Connector Type: Traxxas Quick Connect Motor Plug

ESC Specs:
Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
Weight: 3.07 ounces (87 g)
BEC Voltage: 6.0 volts
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
