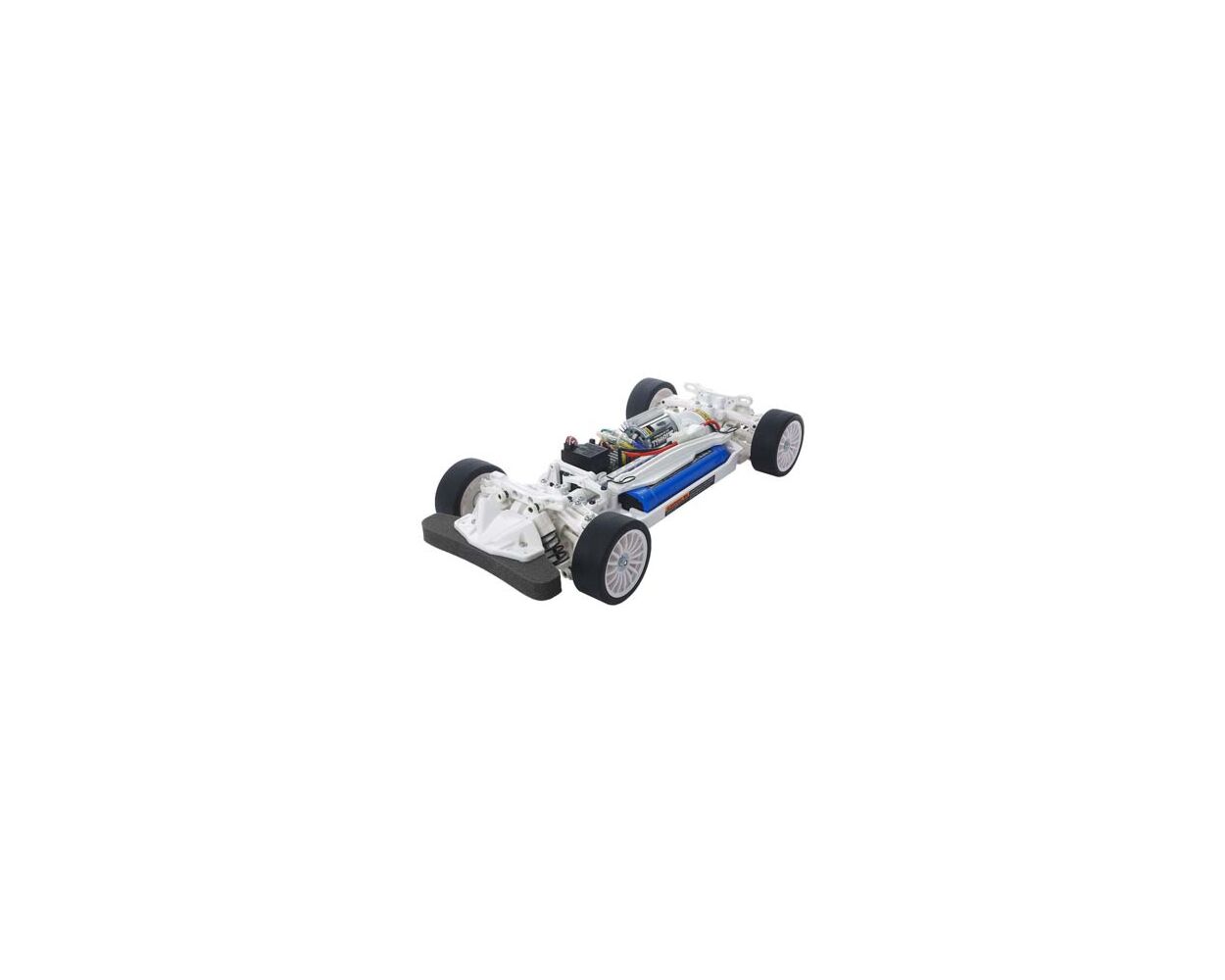

Tamiya TT-02 White Special
A favorite among beginners and veterans alike, the shaft-driven 4WD TT-02 chassis gets a new look with this White Special version. From the hard lower deck to suspension arms, wheel axles, propeller shaft and more, parts are molded in crisp white. White CVA super mini oil dampers are fitted with black springs (hard). Souped-up performance is provided by a torque-tuned motor with full ball bearings for minimal loss, and a silver anodized heat sink to encourage heat dissipation. 16-spoke wheels are molded in white and paired with racing slick tires, and the kit comes in a carry case for great portability.
FEATURES
Chassis: One-piece plastic molded in white
Drive: Four wheel shaft drive
Motor: 540 size brushed with silver anodized heat sink
Differential: Planetary gear type
Suspension: Fully independent double wishbone
Shocks: White plastic body, CVA, oil-filled
Wheels: White molded plastic 16 spoke, 1.02" (26mm) wide, 1.9" (49mm)
diameter, 12mm hex
Tires: Slick rubber 2.5" (65mm) diameter, 1.02" (26mm) wide
Steering: Bellcrank type with servo saver
Front Bumper: Foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis
Specifications
Length: 376mm
Width: 182/190mm
Wheelbase: 257/251mm
Tire Width/Diameter: 27/67mm (Front & Rear)
Bathtub-type Frame
Shaft Driven 4WD
Front/Rear 4-Bevel Resin Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
CVA Super Mini Oil Shocks
Gear Ratio = 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Torque-Tuned Motor
Full Ball Bearings
Electronic Speed Controller (ESC) is sold separately.
REQUIREMENTS
Radio: 2-channel with high speed steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: Compatible with selected battery pack
AA Batteries: Four for transmitter
Body: 190mm touring car or sports car body (Tamiya TT-01, TT-02,
and TT-01 Type E bodies are compatible)
Body paint, track and maintenance equipment
TT02
| Part # | 47364 |
|---|---|
| Brand | Tamiya |
| Power Plant | Electric |
| Terrain Type | On-Road |
| Vehicle Type | Touring |
| Drive Train | 4WD |
| Scale | 1/10 |
