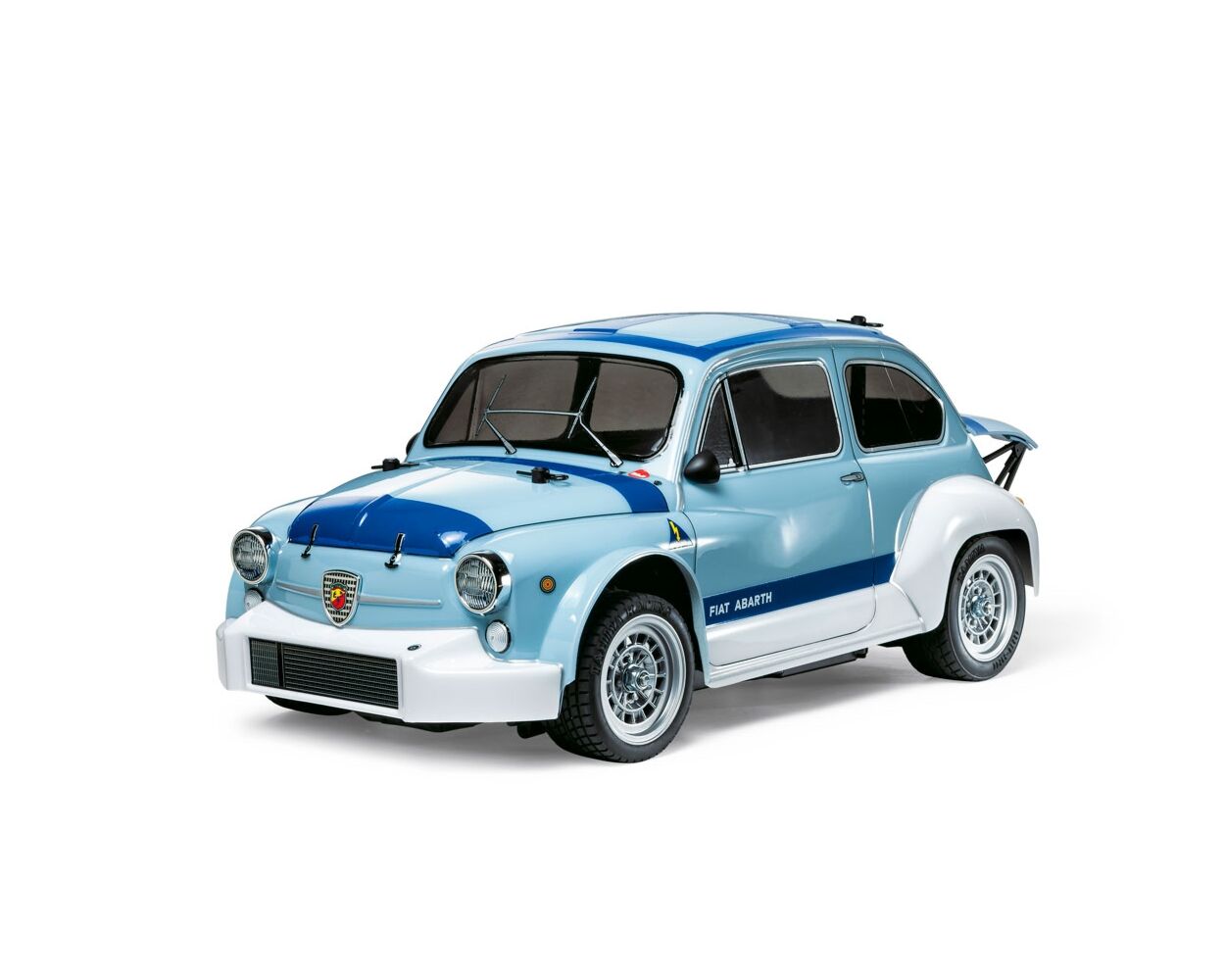

Tamiya 1/10 R/C Fiat Abarth 1000 TCR Berlina Corse Blue-Gray Painted Body MB-01 W/ ESC

Key Features
Simply Change Attachment Directions
4-Wheel Double Wishbone Suspension
Many Hop-Up Option Parts For M-Chassis
Includes 540 Motor And ESC
Unitized Sections Such As Motor Mount

In The Box
(1) 1/10 Fiat Abarth 1000 TCR Berlina Corse MB-01 On-Road Touring Kit
(1) 540-Size Brushed Motor

(1) Thw 1060 esc

Needed to Complete
(1) 2+ Channel Radio System
(1) Standard-Size Steering Servo
(1) 7.2V - 7.4V Battery
(1) Battery Charger

Introduction
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter the all-new MB-01!

Features
The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases, and front- or rear- wheel drive system. Six setups are available in total.
Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
Includes 540 motor.

Overview
The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

Product Specifications
Manufacturer # 47492-A
Vehicle Type On-Road
Chassis MB-01 Chassis
Completion Level Kit
Drivetrain 2WD
Drive Type Forward/Brake/Reverse
Body Clear Polycarbonate
Scale 1/10
Vehicle Size Standard
Radio Sold Separately
Charger Sold Separately
Differential Gear Diffs
Receiver Sold Separately
Shock Type Friction Dampers
Battery Sold Separately
Suspension Independent Suspension
Motor Type Brushed
Speed Control included
Power Type Electric
Servos Sold Separately
