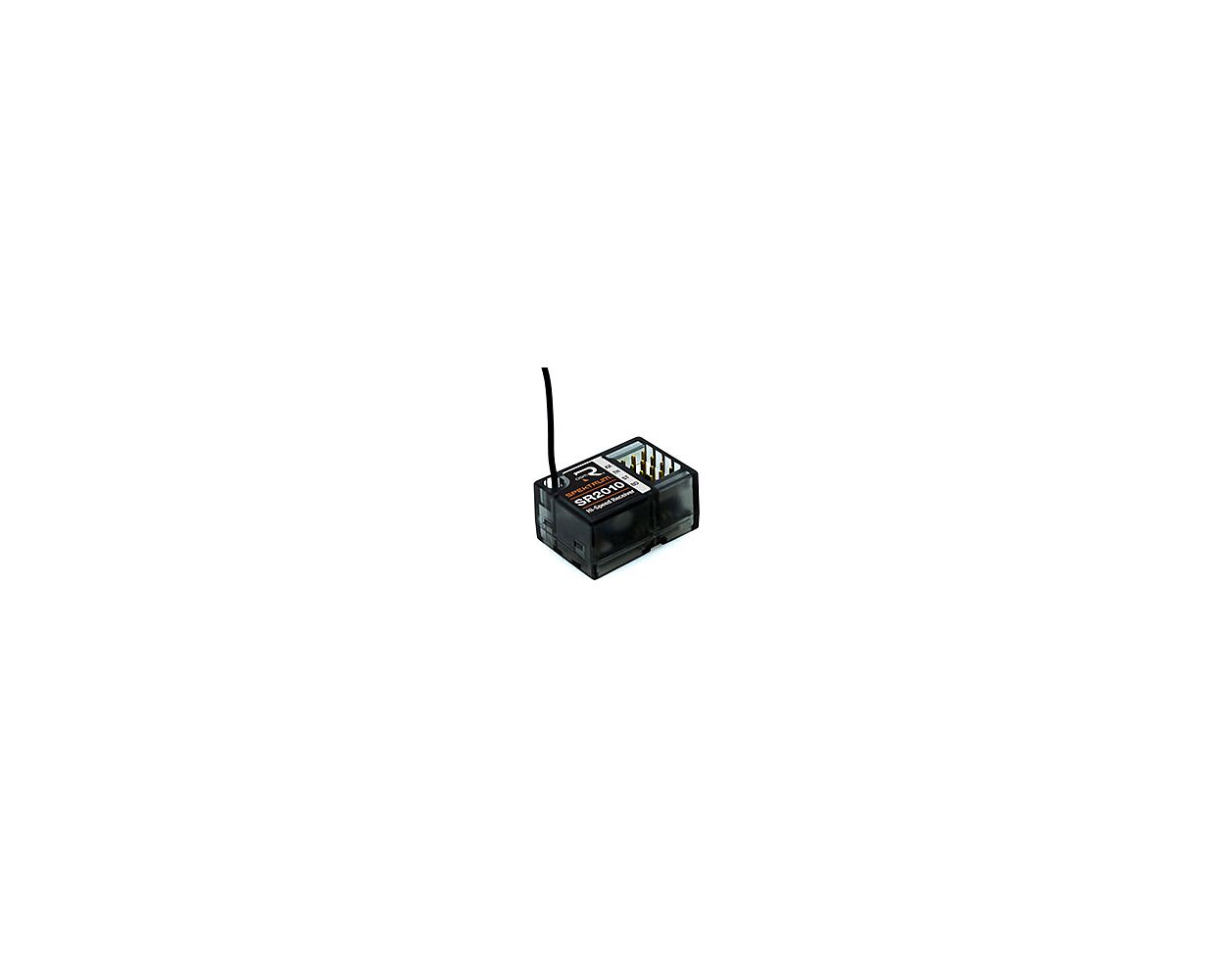

Spektrum SR2010 Micro 2/3Ch Waterproof DSMR Receiver
The SR2010 is the DSMR receiver of choice for racers who demand low latency and lightweight. Built around frequency-agile DSMR technology, the SR2010 features a new, more robust RF solution which distinguishes it as the next evolution in Spektrum Micro Race Receivers.
It will consistently deliver superb range and a lightning-fast 5.5 ms frame rates, even in places where a lot of 2.4GHz systems are in use at once. It's incredibly small footprint makes it easy to mount on most any chassis. Plus, you get the extra protection of a waterproof Reliakote™ conformal coating that seals its electronics from the elements and other corrosives like nitro methane or motor spray.
Features
- Improved antenna design optimizes RF signal strength
- Reliakote™ water-resistant coating provides electronics with protection from water, fuel and motor spray
- Compact, fuelproof case and lightweight design allow for installation in nearly any car or truck
- Equipped with the DSMR™ frequency-agile surface protocol
- Micro size
- Fastest response rate (5.5ms frame rate)
- Ultra lightweight
- Antenna tube holder built right into the receiver case
- Waterproof
- 1-Year Limited Warranty
Technical Notes
Aux channel:
The Aux channel can operate as a 3rd servo channel, or as a power supply for a personal transponder. If 5.5ms frame rate is selected in the transmitter, only two channels, Steering and Throttle, are operational. The Aux channel can be used to power a personal transponder or lights.
If a frame rate other than 5.5ms is selected, the Aux channel will operate as a 3rd servo channel.
IMPORTANT: When using the receiver with a DSMR transmitter, you must re-bind any time you change the frame rate in the transmitter.
Specifications
# of Channels:3 (2 in 5.5ms mode)
Modulation:DSMR
Band:2.4GHz
Length:1.00 in (25.5mm)
Width:0.70 in (17.6mm)
Height:0.50 in (13.6mm)
Weight:2.0 oz (5.5g)
Voltage Range:3.5-9.6v
Antenna Length:93mm
| Part # | SPMSR2010 |
|---|---|
| Brand | Spektrum |
| Channels | 3 |
| Frequency | 2.4 |
| Type | Land |
