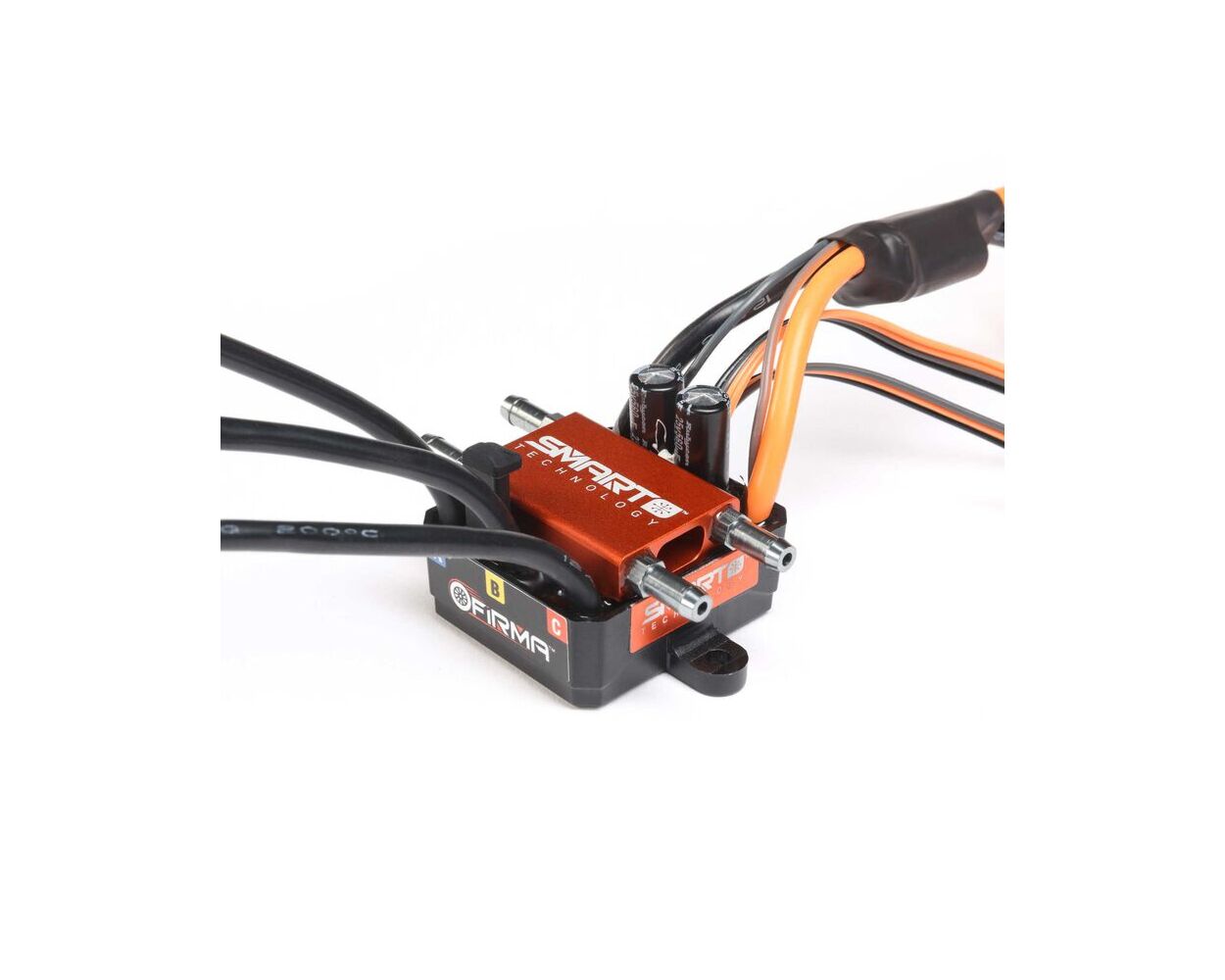

Spektrum Firma 90A Smart Brushless Marine ESC
Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required.
This waterproof, 90A brushless marine ESC powers your boat through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter!
Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof (see instructions for details)
Multiple programming options
Multi-point protection
The Smart data wire on the innovative IC5™ connector replaces sensors, sending telemetry information to the transmitter directly from the Firma™ Smart ESC.
Product Specifications
Application Mid-Size Boat
BEC Continous Current 4A (Switch mode)
BEC Voltage 6V
Connector Type IC5
Input Voltage 2-4S LiPo | 6-12 Cell NiMH
Main Motor Type Brushless
Maximum Burst Current 550A
Maximum Continuous Current 90A
Motor Type Brushless
Output Connector 4mm Bullet
Overload Protection Yes
Product Height 1.19" (30 mm)
Product Length 2.25" (57 mm)
Product Weight 5.3 ounces (150g)
Product Width 2.34" (59 mm)
Technology Smart
Water-Resistant Yes
| Part # | SPMXME1060 |
|---|---|
| Brand | Spektrum |
| Brush Type | Brushless |
| Sensor Type | Sensorless |
| Vehicle Type | Marine |
