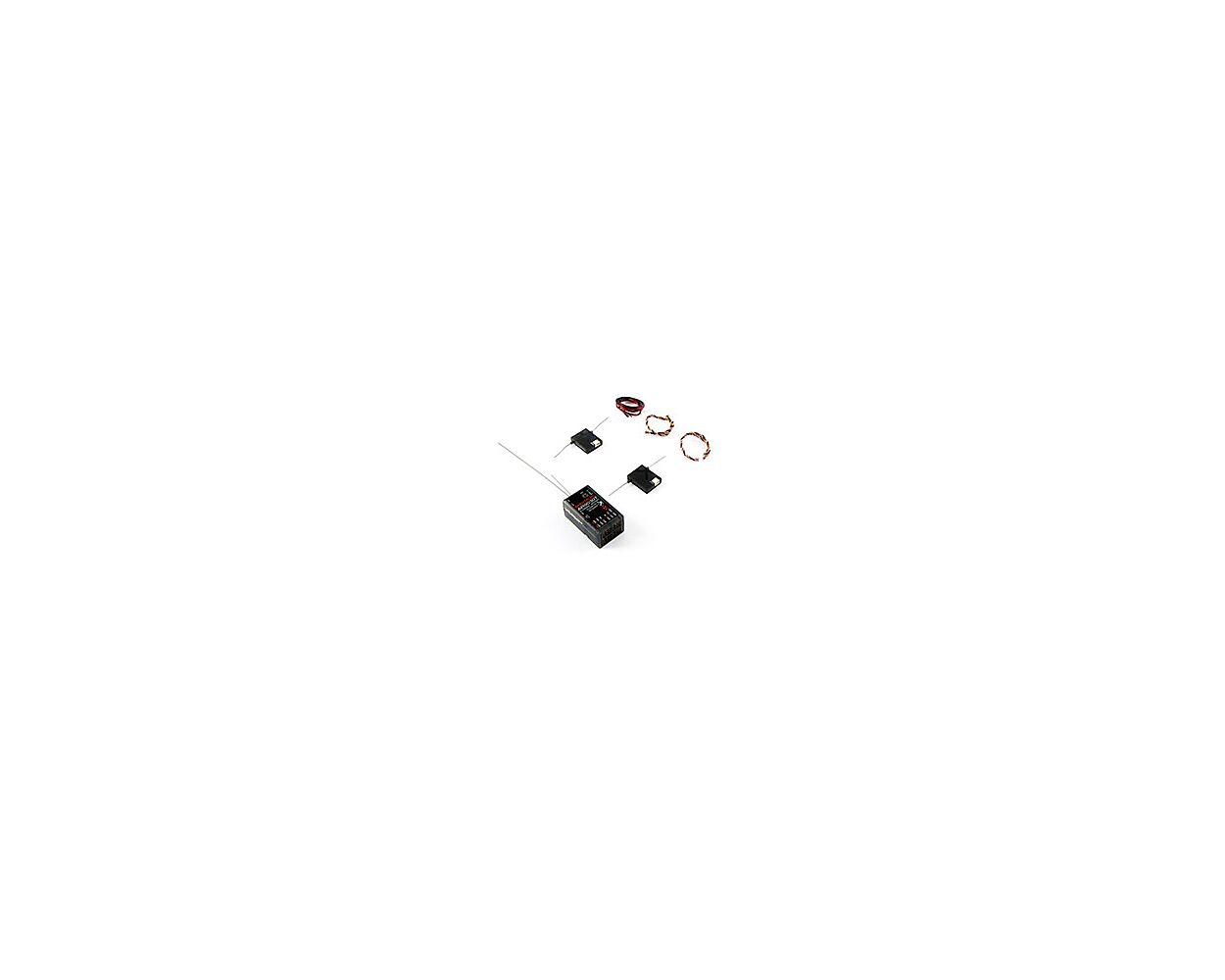

Spektrum AR9030T 9CH Air Integrated Telemetry Receiver
The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2® transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum™ MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.
Features
- Compatible with all Spektrum DSMX transmitters
- Compact design fits most parkflyer size and larger aircraft
- Capable of 11ms frame rates
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
- Receiver pack voltage and flight log data available without the need for additional sensors
- Dual antennas for optimal RF performance
Specifications
# of Channels:9
Modulation:DSM2/DSMX
Band:2.4GHz
Length:1.91 in (48.5 mm)
Width:1.11 in (28.3 mm)
Height:0.82 in (20.9 mm)
Weight:0.63 oz (17.83 g)
Voltage Range:3.5-9V
Experience Level:Intermediate
| Part # | SPMAR9030T |
|---|---|
| Brand | Spektrum |
| Channels | 9 |
| Frequency | 2.4 |
| Type | Air |
