Spektrum AR6100eb DSM2 6CH End Pin Rec

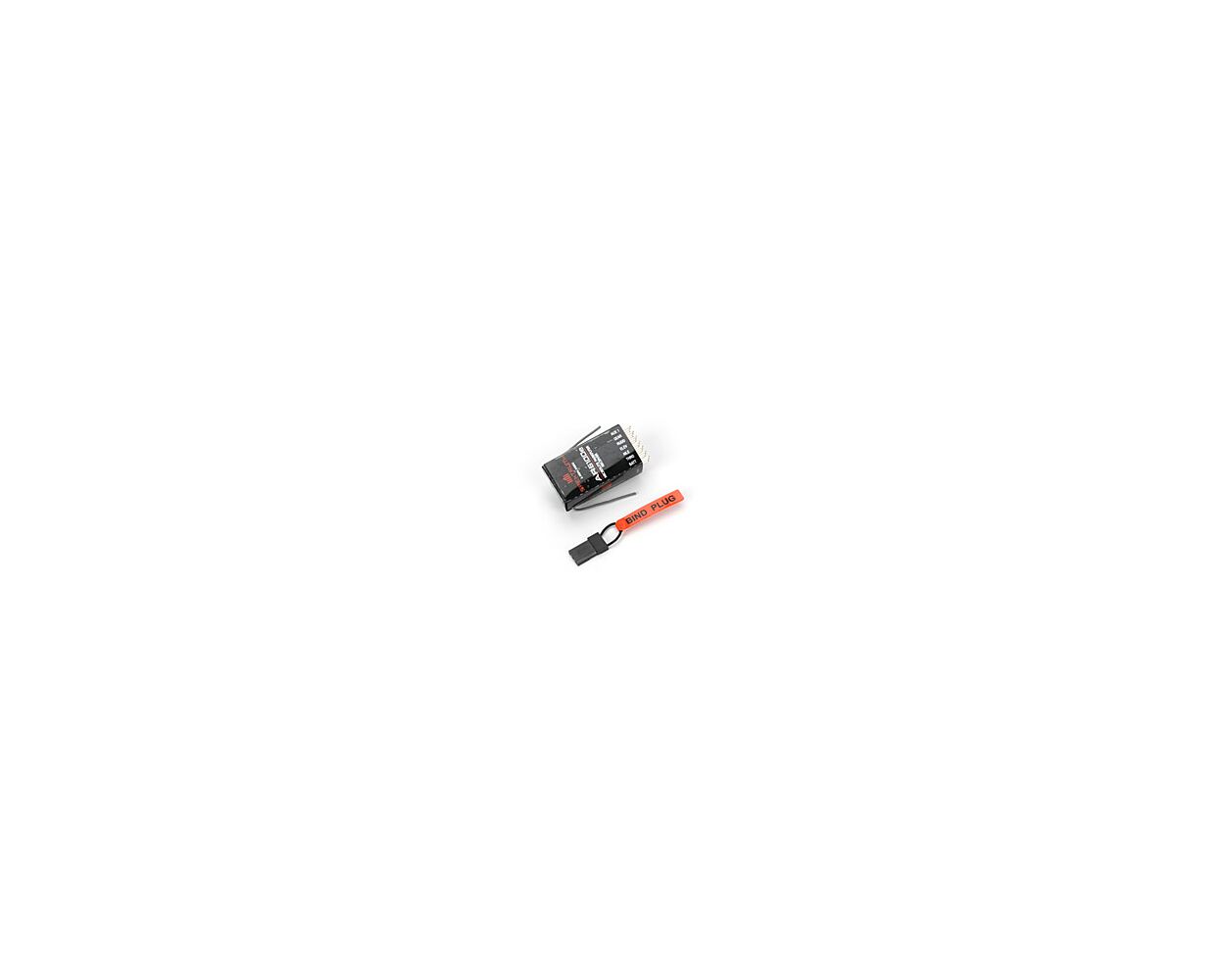

This is the Spektrum AR6100eb DSM2 6CH End Pin Receiver, and is intended for use with Blade Helicopters up to 450 class. The AR6100eb features DSM2™ technology and is compatible with all Spektrum™ and JR® aircraft transmitters that support DSM2 technology, like the 12X, X9303, DX7, DX6i, DX5e and Module Systems.
Note: AR6100 receivers are not compatible with the DX6 parkflyer radio system.
Features:
- 6CH Blade Heli replacement receiver
- QuickConnect with Brownout Detection
- End-Pin configuration
Applications:
- Blade Heli's up to 450 size.
Note: Not for use in applications that have significant carbon or conductive structures.
Specifications:
Type: Blade Heli Replacement
Channels: 6
Modulation: DSM2
Dimension (WxLxH): 19x40x9mm
Weight: AR6100e- 4.4 g
Input Voltage Range: 3.5–9.6V
Resolution: 1024
Compatibility: All DSM2 Aircraft Transmitters and Module Systems except for DX6 parkflyer radio system
| Part # | SPMAR6100EB |
|---|---|
| Brand | Spektrum |
| Channels | 6 |
| Frequency | 2.4 |
| Type | Air |
