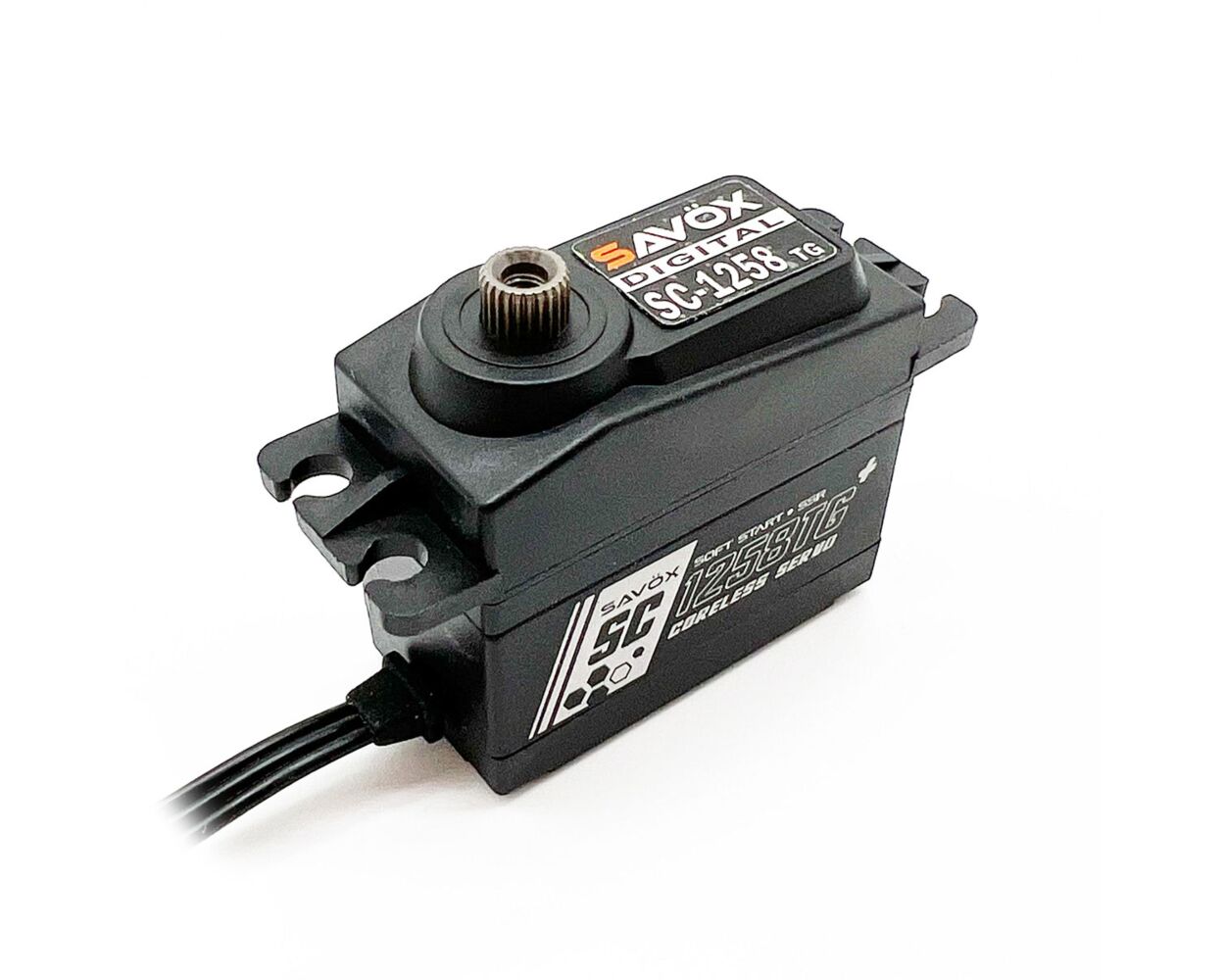

Savox SC-1258TG Digital High Speed Titanium Gear Servo Black Edition
Black Edition Standard Size Coreless Digital Servo 0.08sec / 166oz @ 6V
The SC1258TGP-BE combines leading edge technology with super high 12-bit (4096) resolution and an all black color for s stealth look in RC cars.
"Plus" models feature Soft Start and Sanwa SSR Compatibility
Features:
Extremely strong titanium gears ensure long-life, durability, and light weight.
Sleek black design with laser etching and a shorter 200mm black lead wire.
Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
Aluminum middle case allows for cooler operating temperatures.
Specifications:
Torque @ 4.8v - 9.6kg/133.3oz-in
Torque @ 6v - 12.0kg166.6oz-in
Speed @ 4.8v - 0.10 sec/60 deg
Speed @ 6v - 0.08 sec/60 deg
Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
Weight: 64g
Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An External BEC, or Glitch buster may be needed for efficient, glitch free operation in low voltage electric applications on surface model use.
Aluminum servo horn is strongly advised in use of cars and trucks .
Part # | SC-1258TGPlusBlack |
---|---|
Brand | Savox |
Material Type | Metal |
Scale | Standard |
Type | Digital |
