Pro Tips - Bottom Loading Shock Rebuild

In this Tech tip I’m going to show you how to disassemble, clean, and rebuild bottom loading shocks.

The most important thing to know of when working with shocks is you need to be VERY clean. Having a few rags and basic tools will be needed as well. Be very careful with shock oil because it stains clothing.

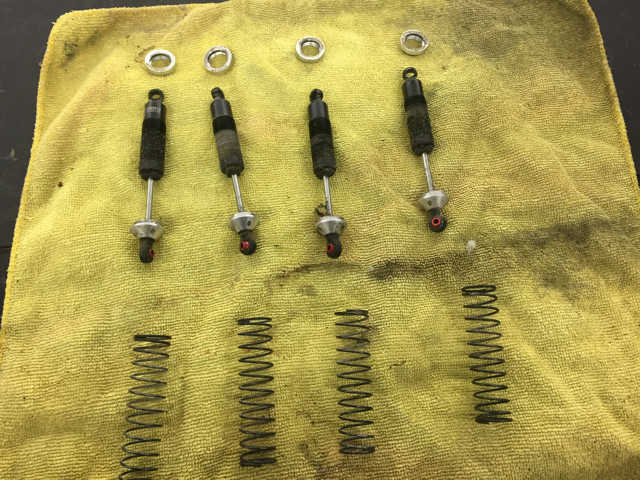

The first thing to do is lay out the shocks on a cloth and remove the springs. Step 1

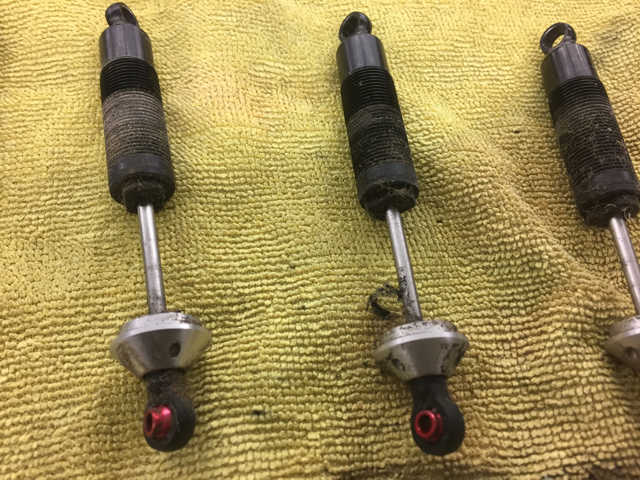

Now that we have them all laid out you can see how dirty these shocks are and they are in desperate need of a rebuild. Step 2

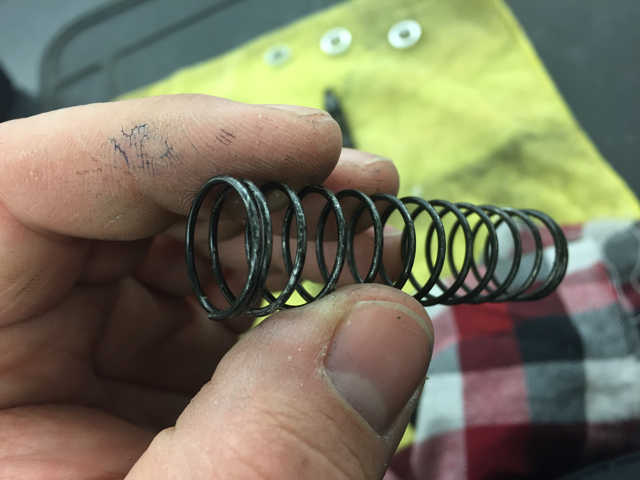

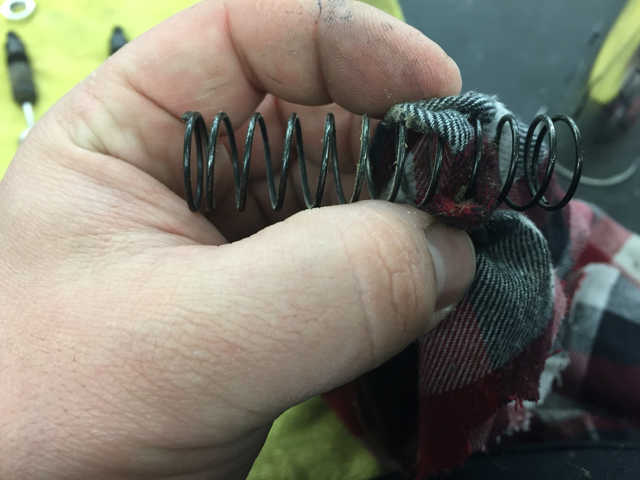

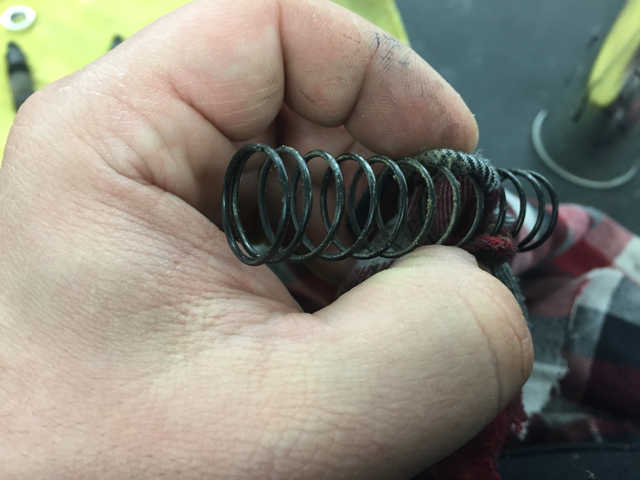

When I clean springs I slide the rag through sideways and pull it up. I then threat the spring through and this usually removes all the dirt. Step 3 Step 4 Step 5

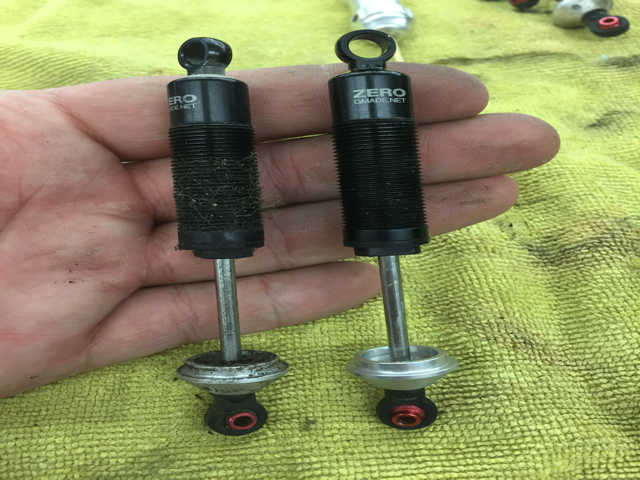

Before disassembling the shocks I like to clean the whole outside to make it less messy when they are apart. It saves from contaminating them when re-assembling (clean one is on the right). Step 6

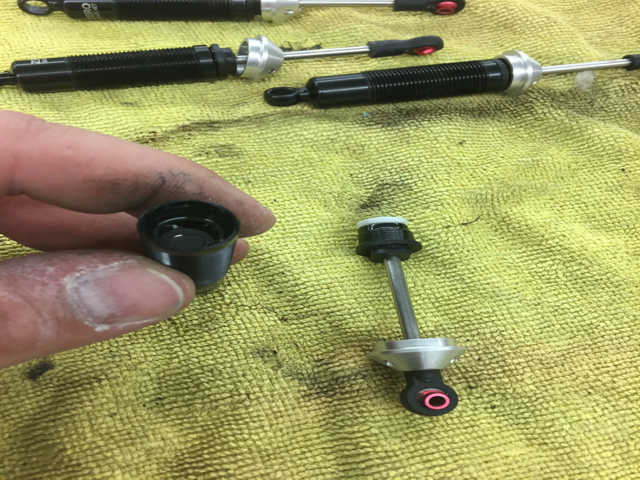

Now you can pull the bottom off of the shocks and dump all the oil out. You can tell from the picture they needed to be re-done badly. Step 7 Step 8

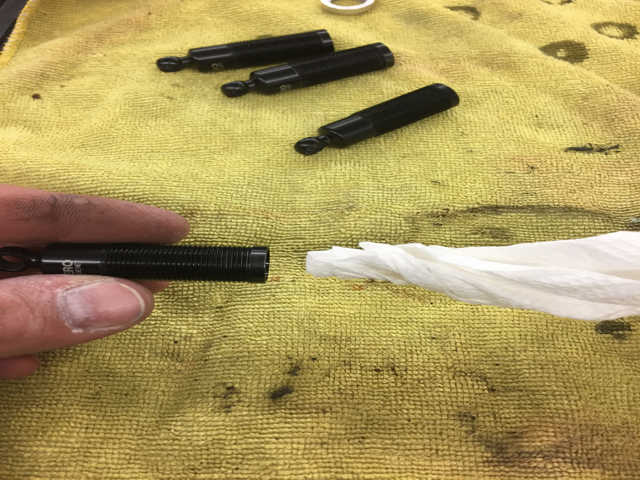

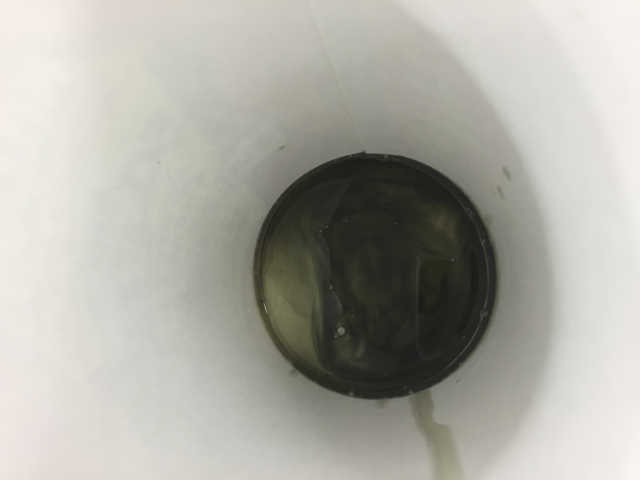

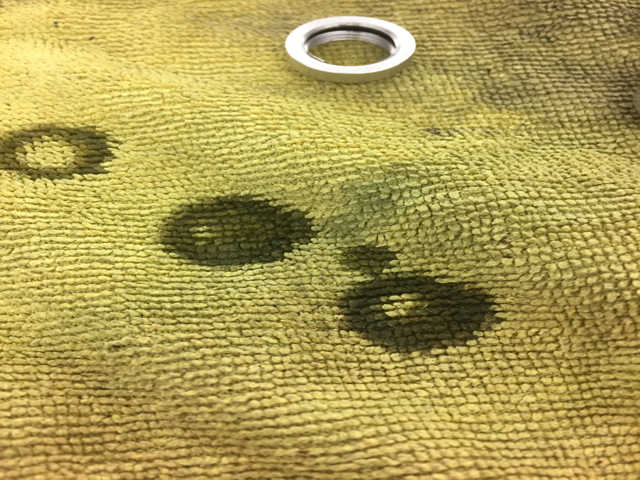

Once you dump all the oil out it's a good idea to let the shock bodies drain. Then clean them out with a fresh paper towel or q-tip. You can tell how dirty they are from the pictures. Step 9 Step 10 Step 11 Step 12

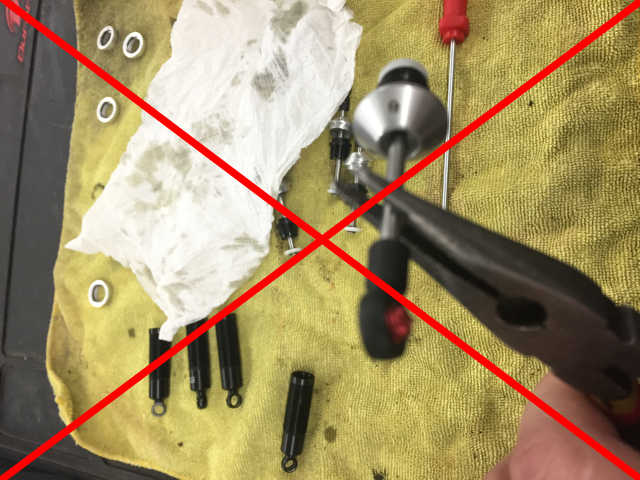

To get the shocks further apart we need to remove the rob ends. Be VERY careful when doing this and it is very important to use protection on your pliers or buy proper shock pliers. Step 13 Step 14

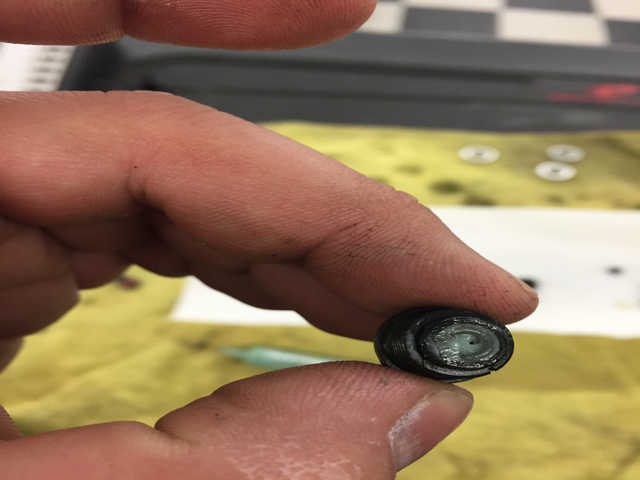

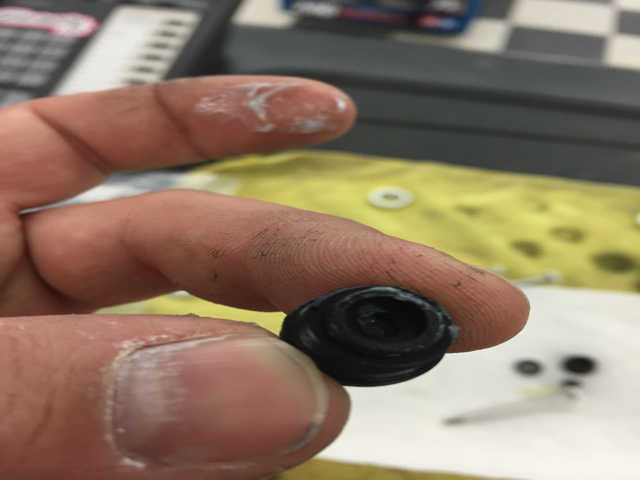

Now with all the shafts removed you can pop the cartridges apart. This can take some patience so take your time and make sure not to damage anything. Step 15

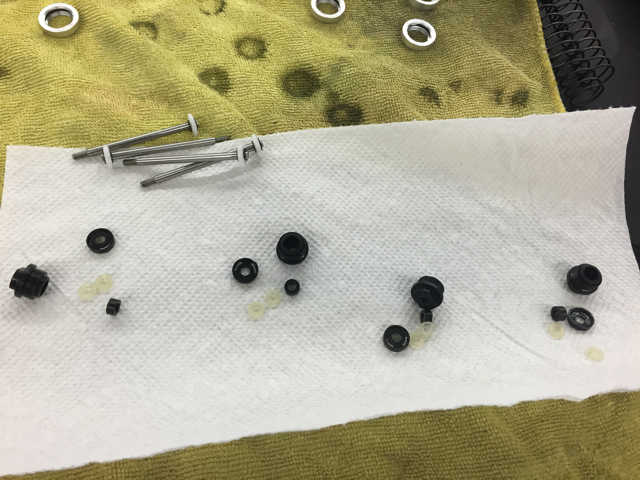

Now it is time to lay out all the parts and inspect all components for wear or damage. If you see any scoring in shocks shafts, broken ripper or torn o-rings these MUST be replaced. Step 16

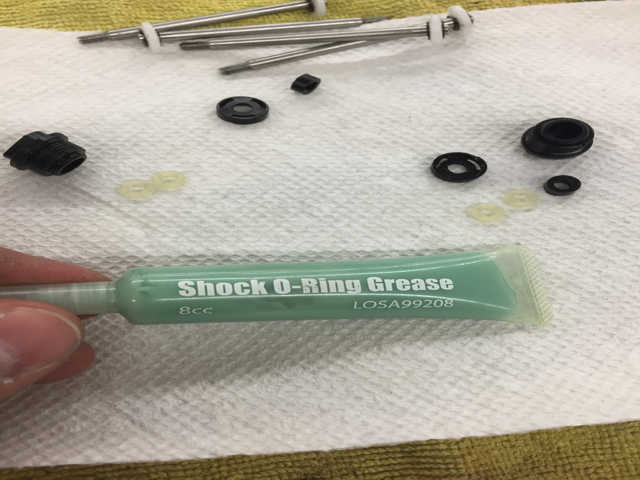

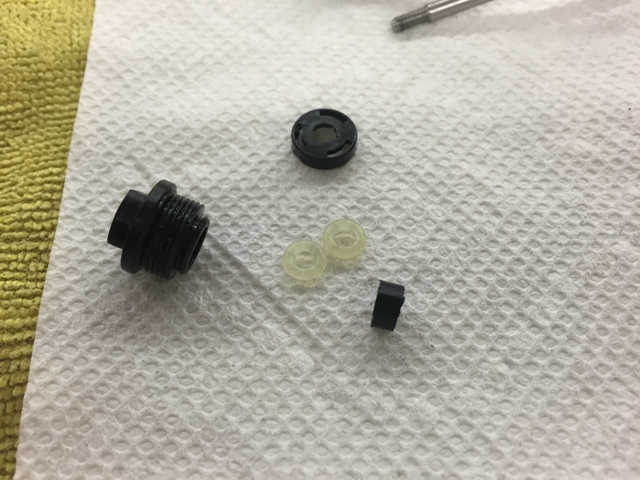

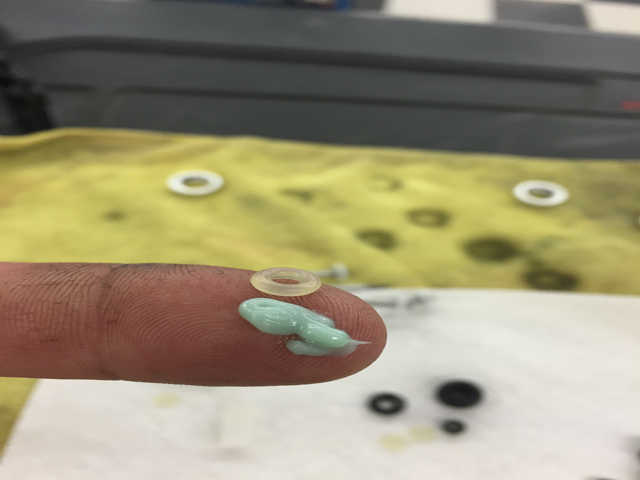

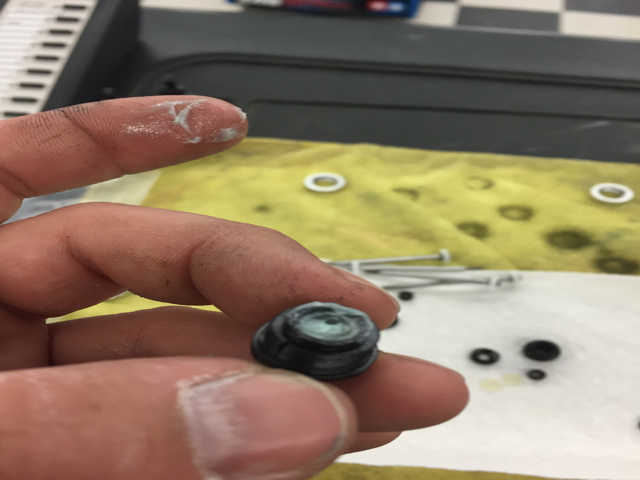

For reassembly I ALWAYS use green slime or shock o-ring grease. When using it it's always better to apply a liberal amount and rub it into the o-ring between your fingers. After that install it into the cartridge and install the spacer. Do the same step to the final o-ring. Step 17 Step 18 Step 19 Step 20 Step 21 Step 22 Step 23

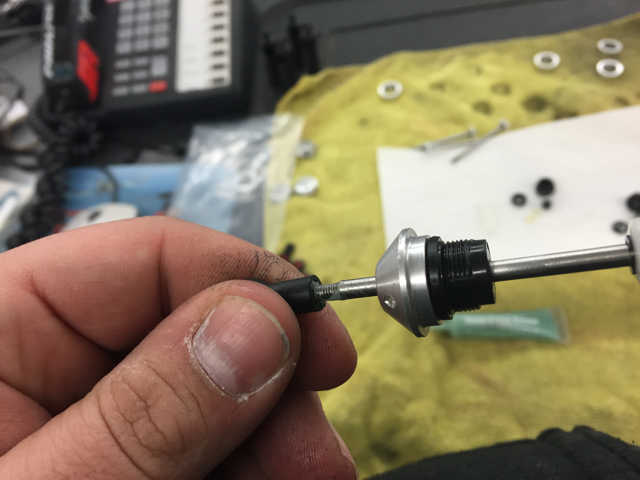

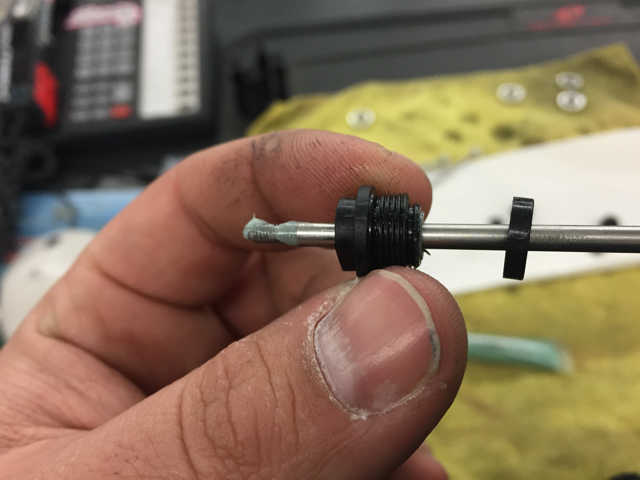

When installing the shock shaft make a screwing motion so the o-rings do not get damaged. After the shaft is inserted I clip the cartridge together so it leaves the pressure off the o-rings until the shaft is in place. Step 24

Now we can re-install the shock bottom and rod end. Step 25

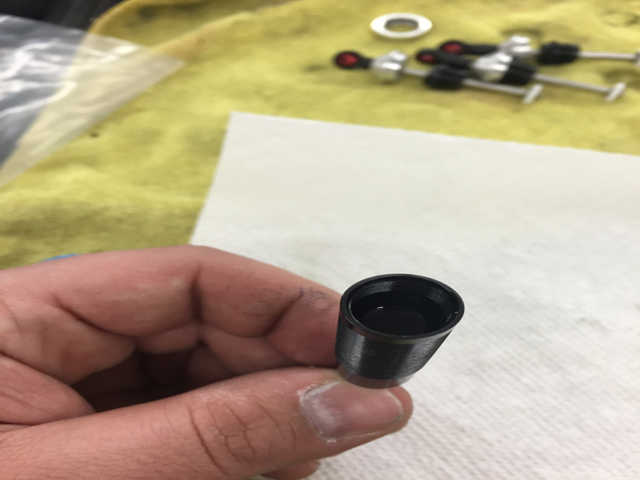

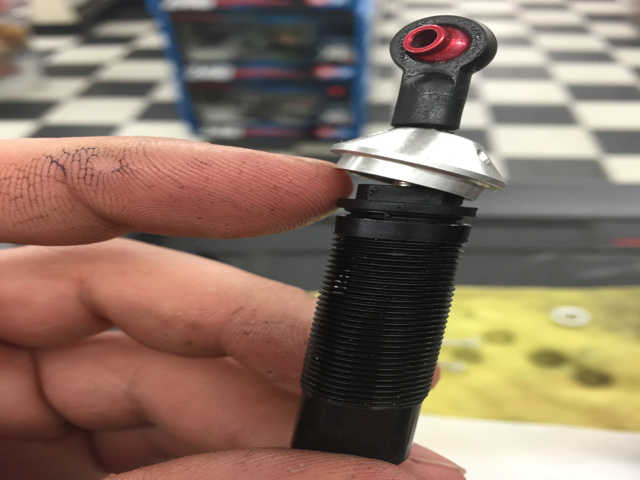

Fill the shock body about 3/4 of the way full. Make sure there are no air bubbles. Install the cartridge with the shaft fully pushed in. The reason for doing this is so we could insert the piston to the shock oil and stop it from bubbling when doing so. Once the piston is halfway in you can slide the cartridge down and start to threat it in. Step 26 Step 27 Step 28

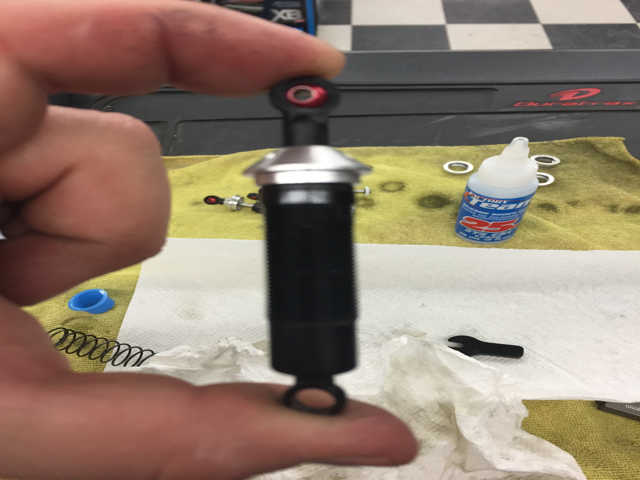

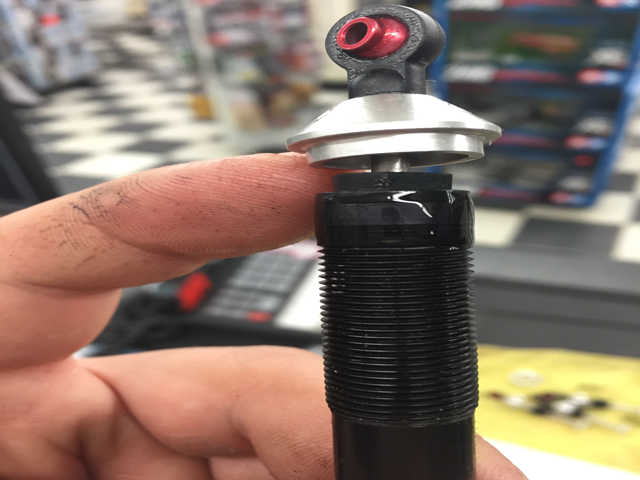

When you get to 2/3s of the way tight you should see oil coming out from the bleeder hole. You need to see this because if not there will be air caught in there. After you see this you can push the shaft in and tighten it all the way down. If not top-up the oil and try again. Step 29 Step 30

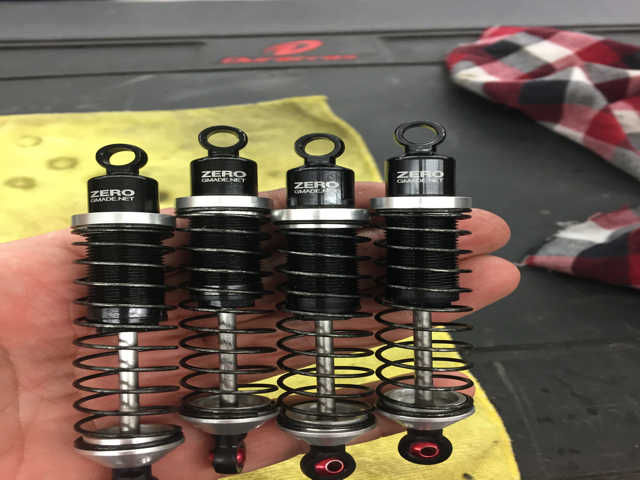

After that is done you can re-assemble the springs and install the spring collars. You're all done! Step 31
