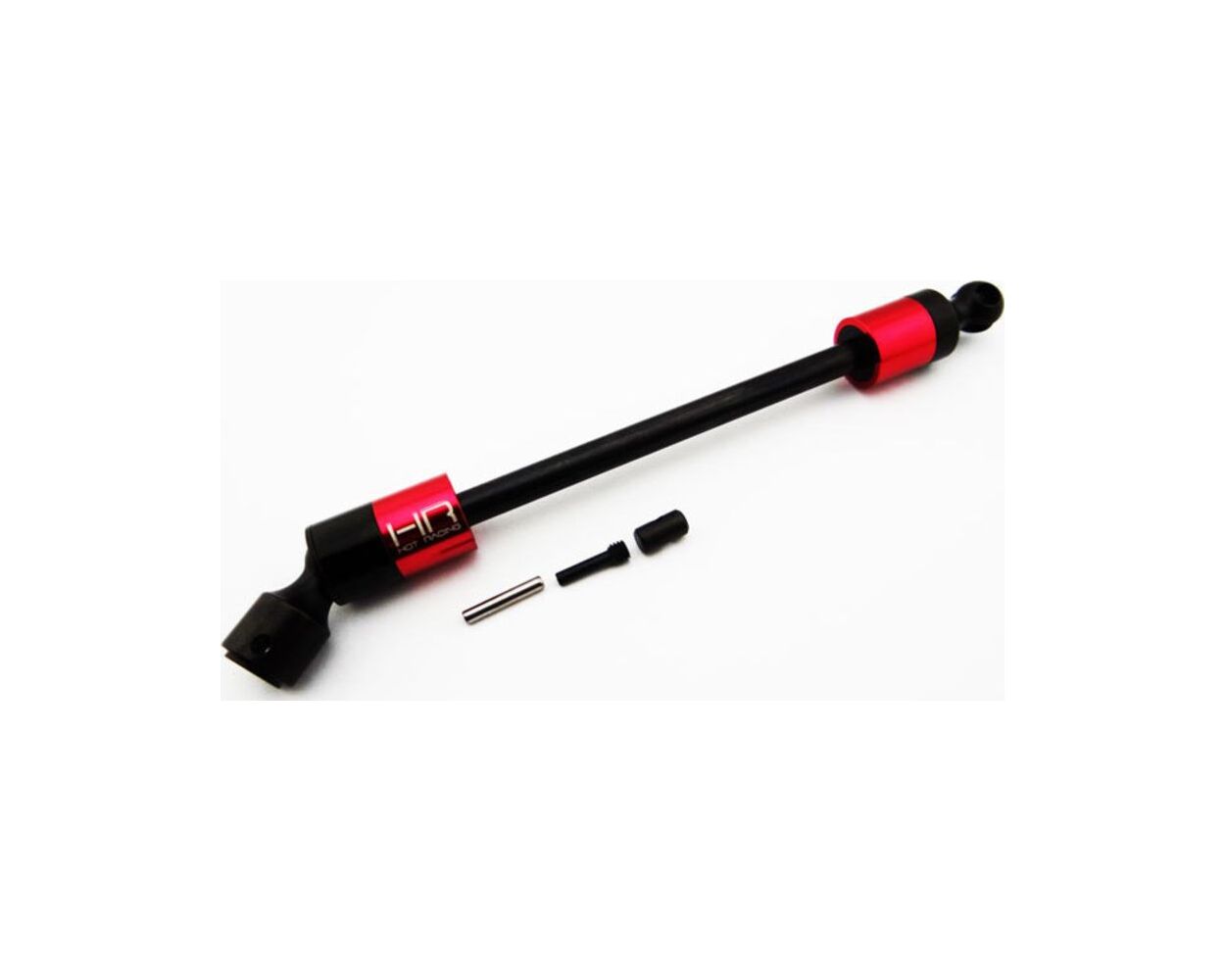

Hot Racing TelescopingSteel Rear Driveshaft Axial Yeti XL

FEATURES:

Heavy duty CNC machined hardened carbon steel construction
Replaces factory plastic rear drive shaft
Screw-on sleeves capture telescoping dogbone pins, sleeves are red anodized aluminum
Steel is black oxide finished for corrosion protection

YOU WILL RECEIVE:

One (1) assembled drive shaft
One (1) CV joint coupler
One (1) CV joint cross pin
One (1) steel screw pin

SPECIFICATIONS:

Approximate overall (end-to-end) compressed length: 163mm (6.4 inch)
Approximate overall (end-to-end) extended length: 183mm (7.2 inch)
Approximate travel: 20mm (0.8 inch)
Outside diameter: 15mm (0.59 inch)
Slider pin: 12.8x2.5mm

REQUIREMENTS:

Removal and installation of drive shaft per Axial manual. Requires temporary removal of rear pinion gear.
Recommended to maintain telescoping assembly and CV joints with grease
Recommended to use a removable-type locking adhesive on screws threading into metal
