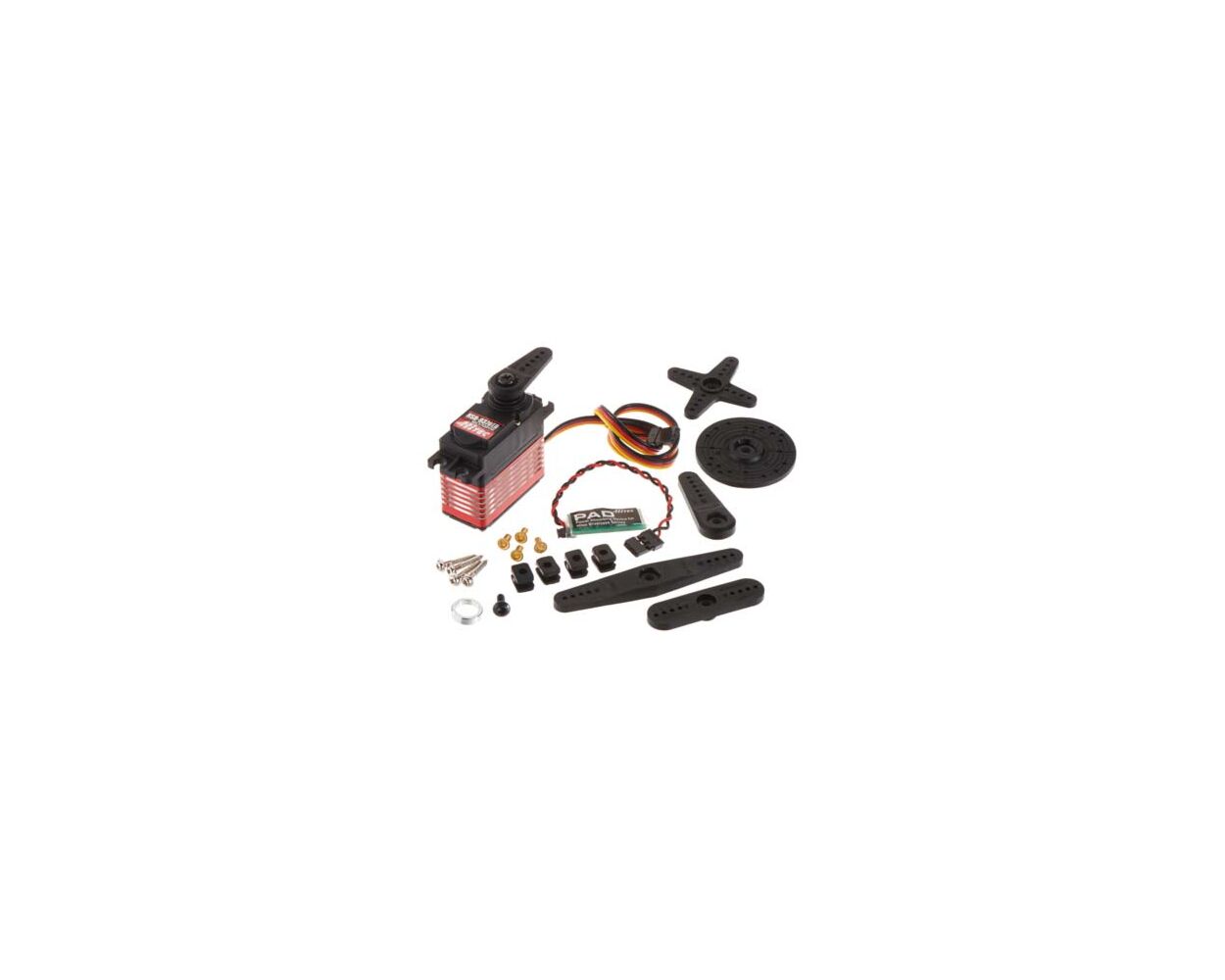

Hitec HSB-9370TH Brushless Titanium Geared Servo
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.
Ideal for airplanes, helicopters, 1/10 and 1/8 scale on- and off-
road vehicles
Titanium gears with dual ball bearings
High performance, brushless motor designed by Steve Neu
Programmable features include, Fail Safe On/Off and Position,
Direction, EPA, Speed (Slower), Dead Band, and Soft Start
(downloadable software and DPC-10 PC Interface required)
Ultra hard gear shaft with three axial metal bushings
Water and dust resistant
Diamond cut aluminum center heatsink, red in color
Metal/Plastic/duralumin hybrid first gear prevents electrical noise
from affecting other components in the aircraft or vehicle
PAD (Power Absorbing Device) prevents backflow of current when
voltage regulators or receivers with voltage regulators are used
Speed: 0.12 sec/60
Torque: 6.0V: 347 oz-in (25 kg-cm) 7.4V: 347 oz-in (25 kg-cm)
Features
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- 25-Tooth Output Spline not normal hitec 24t
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
Programmable Functions (with optional programmer)
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Data Save / Load
- Program Reset (From File)
HS-9370THÂ Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.12 ~ 0.10 |
| Maximum Torque Range oz. / in. | 347 |
| Maximum Torque Range kg. / cm. | 25 |
| Current Draw at Idle | 27Â mA |
| No Load Operating Current Draw | 250Â mA |
| Stall Current Draw | 2,100Â mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.57 x 0.79 x 1.50 |
| Dimensions (Metric) | 40.0 x 20.0 x 38.0 |
| Weight (Ounces) | 2.4 |
| Weight (Gram) | 68.0 |
| Circuit Type | EBL Digital |
| Motor Type | Brushless |
| Gear Material | Titanium |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 20 / 80 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 30 - 40% |
| Sailplane | 2 meters and up |
| 3D Performance | 30 - 40% |
| Scale | 30 - 40% |
| Electric Helicopter | 700mm and up |
| Gas Helicopter | 90+ Class |
| On Road | 1/8th |
| Monster Truck | 1/8th |
| Buggies | 1/8th |
| Truggies | 1/8th |
| Short Course / Truck | 1/8th |
| Crawlers | N / A |
| Sail Boat | = >1M & Scale |
| Power Boat | 1/10th |
| Part # | HSB-9370TH |
|---|---|
| Brand | Hitec |
| Material Type | Metal |
| Scale | Standard |
| Type | Digital |
