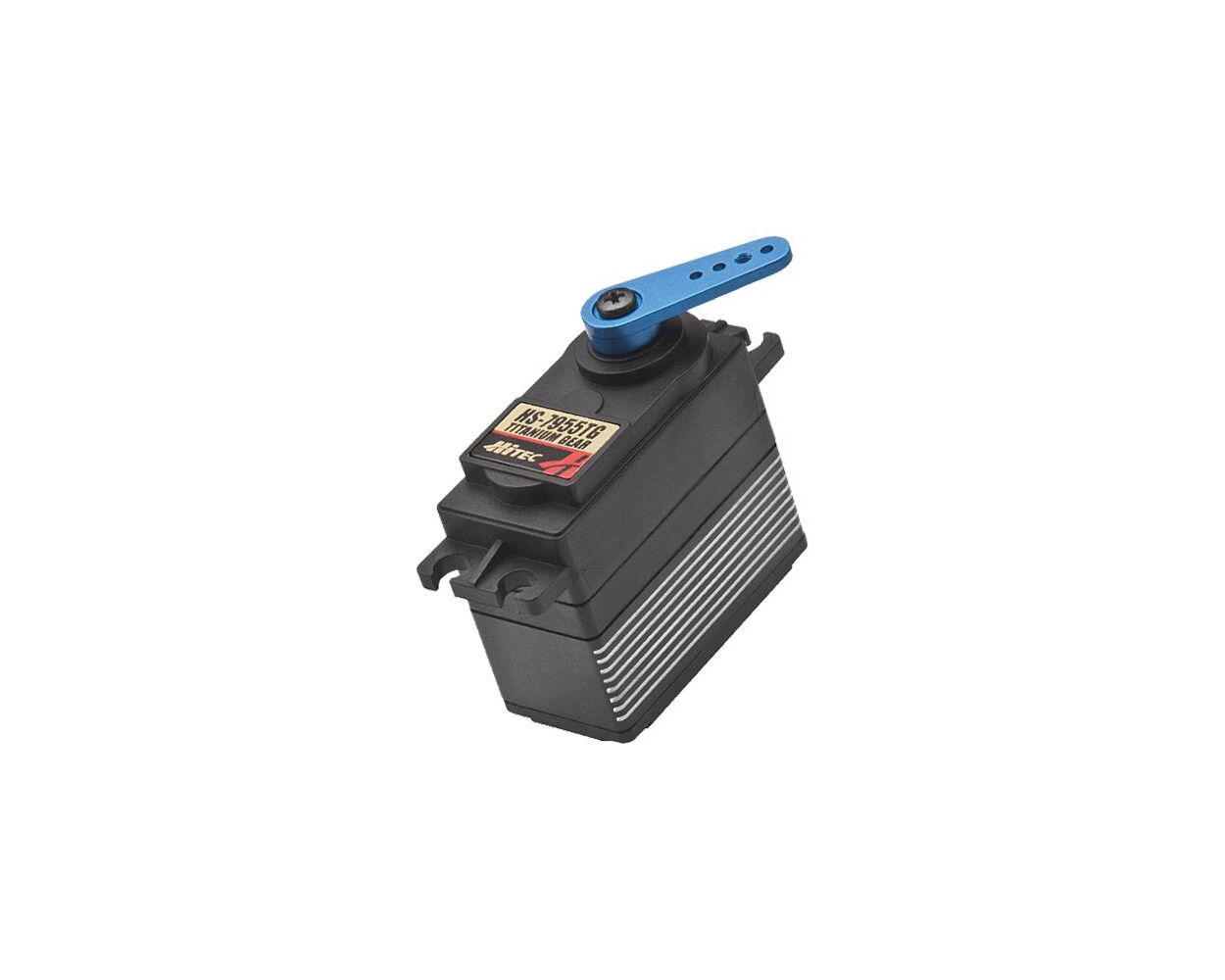

Hitec HS-7955TG High Torque Titanium Geared Servo
$150.55
In Stock
SKU
669962379557
Hitec's best servo just got better. The HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks and Rock Crawlers.
Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and brass bushing in the servo case. The perfect upgrade for any rcock crawler such as the Scx10, Smt10 monster trucks and bomber RR10
Features
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Titanium Gear Train (MK first gear)
Programmable Functions (With use of optional programmer)
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
HS-7955TG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.19 ~ 0.15 |
| Maximum Torque Range oz. / in. | 250 ~ 333 |
| Maximum Torque Range kg. / cm. | 18.0 ~ 24.0 |
| Current Draw at Idle | 9 mA |
| No Load Operating Current Draw | 300 mA |
| Stall Current Draw | 4,200 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.57 x 0.78 x 1.45 |
| Dimensions (Metric) | 40.0 x 20.0 x 37.0 |
| Weight (Ounces) | 2.29 |
| Weight (Gram) | 65.0 |
| Circuit Type | G2 Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | Titanium |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 30 - 40% |
| Sailplane | 2 meters and up |
| 3D Performance | 30 - 40% |
| Scale | 30 - 40% |
| Electric Helicopter | 700mm and up |
| Gas Helicopter | 90+ Class |
| On Road | 1/8th |
| Monster Truck | 1/8th |
| Buggies | 1/8th |
| Truggies | 1/8th |
| Short Course / Truck | 1/8th |
| Crawlers | N / A |
| Sail Boat | = >1M & Scale |
| Power Boat | 1/10th |
| Part # | HS-7955TG |
|---|---|
| Brand | Hitec |
| Material Type | Metal |
| Scale | Standard |
| Type | Digital |
