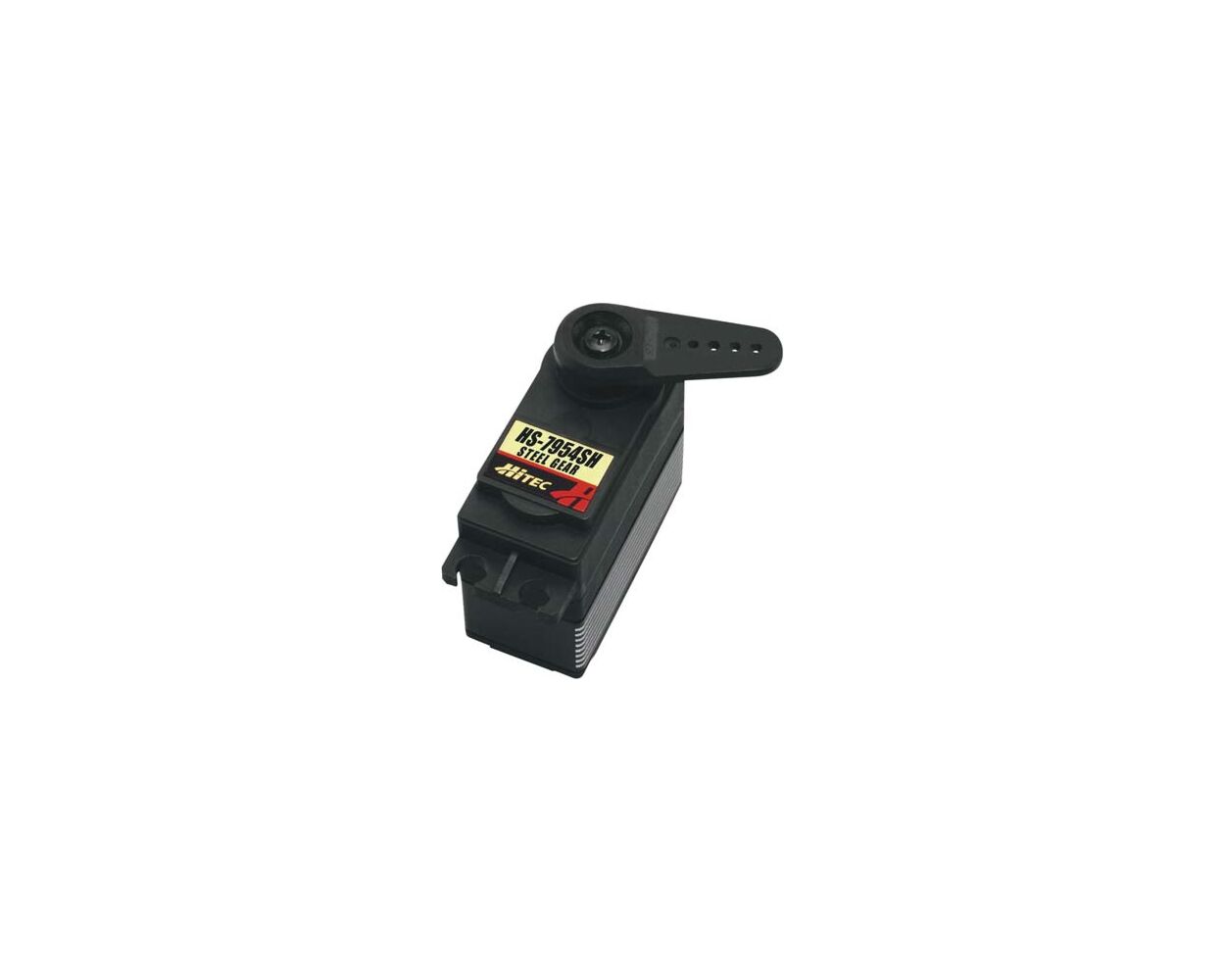

Hitec HS-7954SH High Voltage & Torque Steel Geared Servo
$140.24
Out of Stock
SKU
669962379540
The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor. With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilizing a heavy duty case that incorporates an aluminum heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings.
Features
- G2 Digital Circuit
- HV Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Steel Gear Train (MK first gear)
Programmable Functions (with use of HFP-20 programmer)
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
HS-7954SH Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.15 ~ 0.12 |
| Maximum Torque Range oz. / in. | 333 ~ 403 |
| Maximum Torque Range kg. / cm. | 24.0 ~ 29.0 |
| Current Draw at Idle | 9 mA |
| No Load Operating Current Draw | 240 mA |
| Stall Current Draw | 3,000 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.57 x 0.78 x 1.45 |
| Dimensions (Metric) | 40.0 x 20.0 x 37.0 |
| Weight (Ounces) | 2.40 |
| Weight (Gram) | 68.0 |
| Circuit Type | G2 Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | Steel |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | > 40% |
| Sailplane | 2 meters and up |
| 3D Performance | > 40% |
| Scale | > 40% |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/8th |
| Monster Truck | 1/8th |
| Buggies | 1/8th |
| Truggies | 1/8th |
| Short Course / Truck | 1/8th |
| Crawlers | N / A |
| Sail Boat | = >1M & Scale |
| Power Boat | N / A |
| Part # | HS-7954SH |
|---|---|
| Brand | Hitec |
| Material Type | Metal |
| Scale | Standard |
| Type | Digital |
