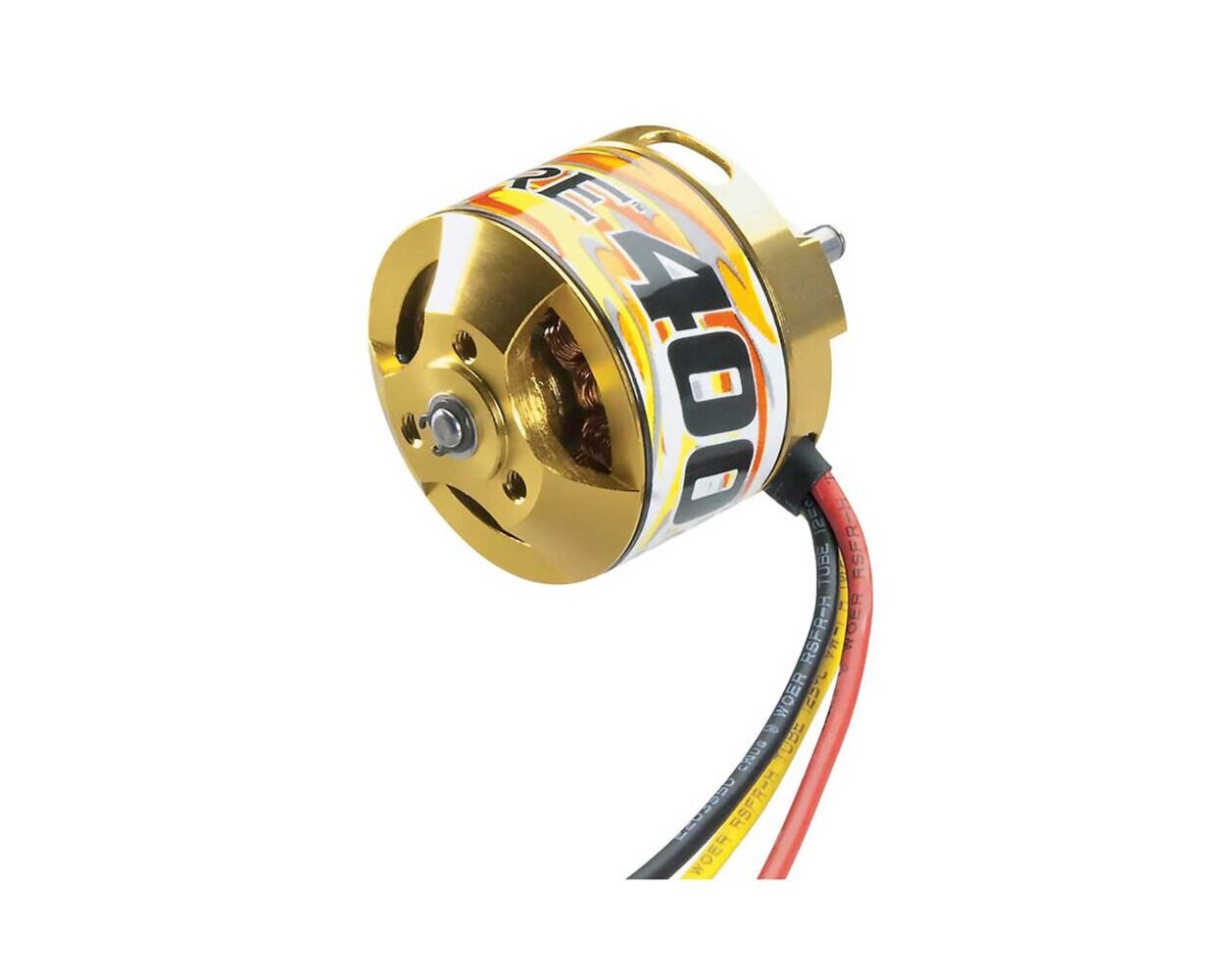

Electrify Rimfire 400 28-30-950 Outrunner Brushless

FEATURES:

For Sport airplanes up to 32oz (905g) and 3D airplanes up to 20oz (565g) Designed for explosive acceleration and maximum torque Lightened aluminum can houses high torque rare earth Neodymium magnets Double shielded bearings Better cooling means 50% more power than many others Outrunners of similar size Virtually maintenance-free; no commutators or brushes to wear out

INCLUDES:

Great Planes ElectriFly RimFire 400 28-30-950 Brushless Outrunner Electric Motor with leads and 2mm male bullet connectors, motor mount and prop adapter

REQUIRES:

Speed control for Brushless Motors such as the ElectriFly Silver Series 25 (GPMM1820)

SPECS:

• Motor Diameter: 1.1" (28mm)
• Motor Length: .87" (30mm)
• Shaft Diameter: 3mm
• Shaft Length: .47" (12mm)
• kV Rating: 950 rpm/V
• Weight: 1.91oz (54g)
• Input Voltage: 7.4-11.1V (2-3S LiPo) Max.
• Constant Current: 14A
• Max Surge Current: 20A Max
• Constant Watts: 155W
• Burst Watts: 220
• No Load Current: .7A
• Suggested Prop Sizes: 8x6 - 10x4 slow fly

COMMENTS:

If 3mm Prop Adapters are needed order; GPMQ4930 3mm Set Screw Type GPMQ4959 3mm Collet Type
