Electrify Rimfire .32 42-50-800 Outrunner Brushless Motor
$124.77
Out of Stock
SKU
735557347000

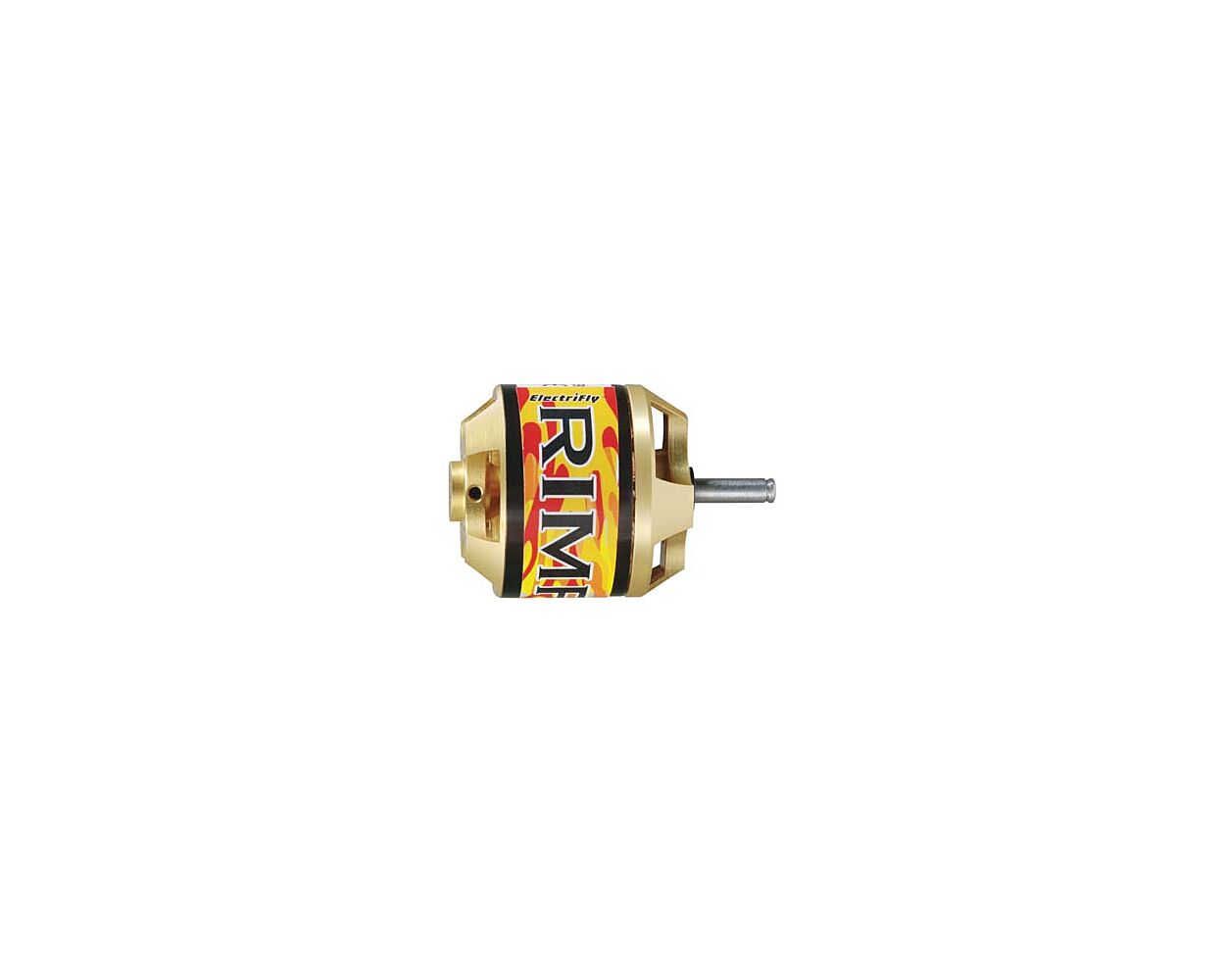

This is the Great Planes ElectriFly RimFire .32 42-50-800 Brushless Outrunner 14 Pole Electric Motor.
FEATURES
- For Sport airplanes up to 6.5lbs (2950g) and 3D airplanes up to 4lbs (1814g)
- Designed for explosive acceleration and maximum torque eliminating the need for a gearbox
- Lightened aluminum can houses high torque rare earth Neodymium magnets
- Double shielded bearings
- Virtually maintenance-free; no commutators or brushes to wear out
REQUIREMENTS
Brushless Motor-compatible 45 amp Electronic Speed Control
Propeller: 12x6 - 13x8 electric
SPECIFICATIONS
Motor Diameter: 1.7" (42mm)
Motor Length: 2.0" (50mm)
Shaft Diameter: .20" (5mm)
Shaft Length: .67" (17mm)
Lead Length: 3" (76mm)
Connectors: Bullet type, 4.0mm diameter
Max. Constant Current: 50A
Max. Surge Current: 80A
Max. Constant Watts: 925W
Max. Burst Watts: 1480W
No Load Current: 2.6A
Input Voltage: 11.1-14.8V (3-4S LiPo)
RPM/V (kV Rating): 800
Weight: 7oz (198g)
| Part # | GPMG4700 |
|---|---|
| Brand | Great Planes |
| Brush Type | Brushless |
| KV Rating | 501-1000 |
| Runner Type | Outrunner |
| Sensor Type | Sensorless |
| Vehicle Type | Air |
