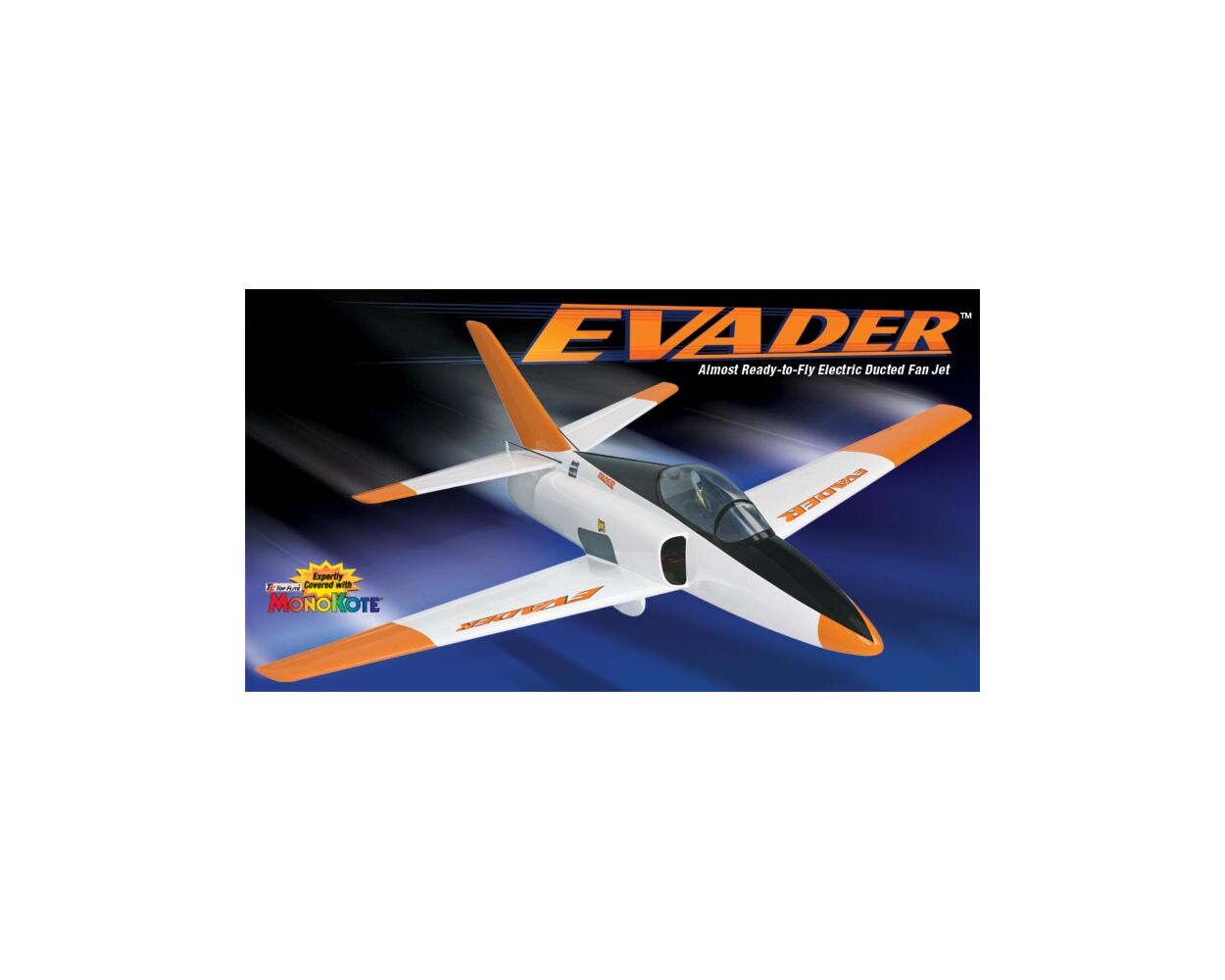

Electrify Evader

FEATURES:

Construction: Fiberglass fuselage, balsa wing and tail sections
Wings: One piece wing, mounted to fuselage with two phillips screws
Covering: Top Flite MonoKote
Motor: ElectriFly Ammo Inrunner Brushless 24-45-3790, GPMG5185
Ducted Fan: 56mm Great Planes HyperFlow, GPMG3910
Canopy: Clear, magnetically secured to fuselage, easy access to
battery
Decals: Military and sport trim schemes-Navy, U.S. Air Force and
Evader markings

INCLUDES:

ARF ElectriFly Evader Ducted Fan Sport Jet with military and sport
decals, ducted fan, motor, 15' (4.6m) bungee for hand launches,
plywood stand and instruction manual

REQUIRES:

Radio: 4-channel with mini receiver
Servos: Two 20 oz-in torque micro servos
Electronic Speed Control: 35A for brushless motors
Battery: Great Planes ElectriFly 14.8V (4S) 2200mAh 25C LiPo
Battery Charger: LiPo compatible
Building and field equipment

SPECS:

Wingspan: 26.5" (675mm)
Wing Area: 153 in² (9.9 dm²)
Weight: 28-30 oz (790-850 g)
Wing Loading: 26.4-28.2 oz/ft² (81-86 g/dm²)
Length: 30.5" (775mm)
Center of Gravity (CG): 3-3/8" (86mm) back from the cutout in the
leading edge
Control Throws: Low Rate High Rate
Elevator: 3/16" (4.8mm) 7° 1/4" (6.4mm) 10°
Ailerons: 1/4" (6.4mm) 11° 3/8" (9.5mm) 17°
