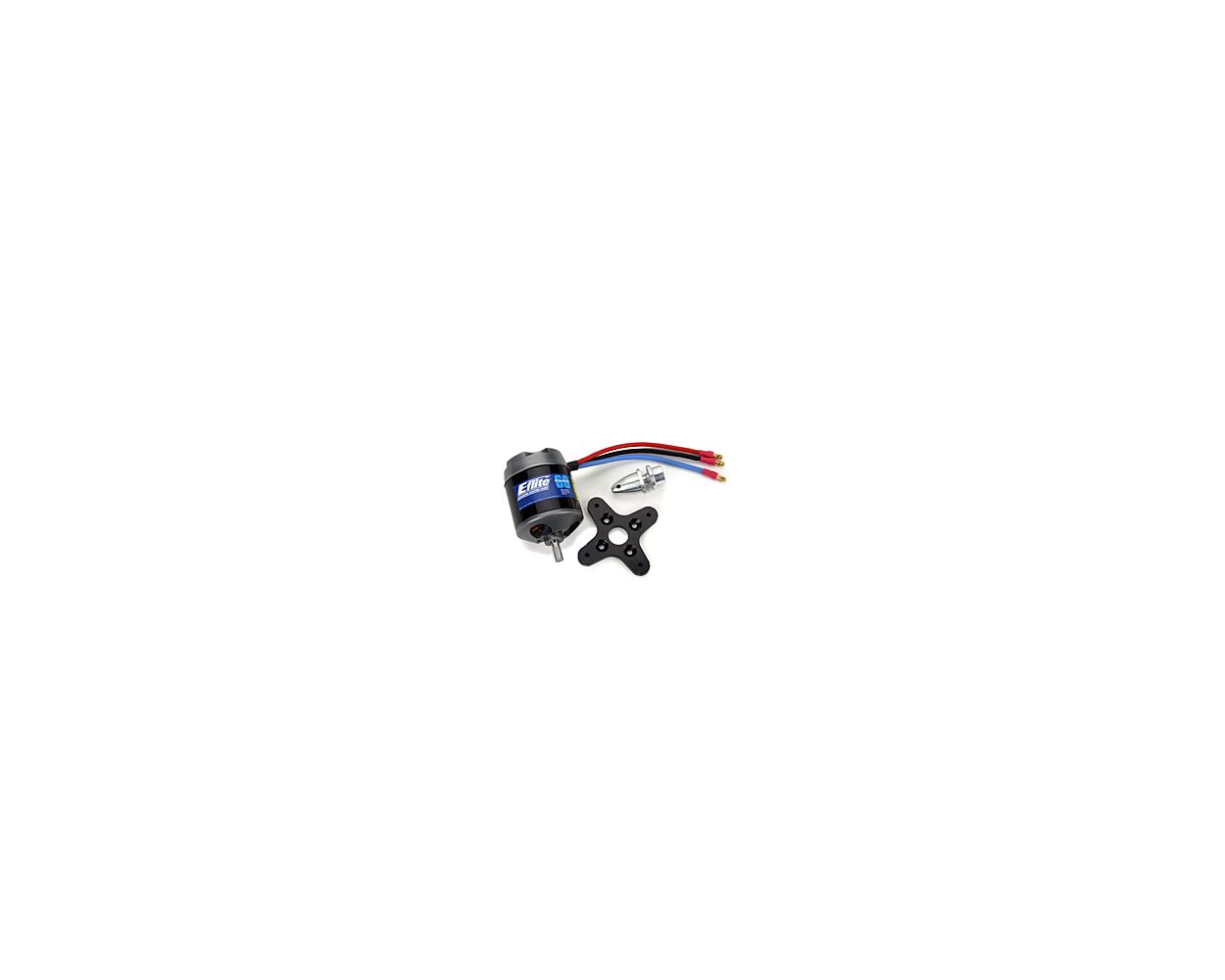

E-flite Power 60 Brushless Outrunner Motor 400Kv

$162.99
In Stock
SKU
605482773864

The Power 60 is designed to deliver clean and quiet power for 60-size sport and scale airplanes weighing 6 to 10 pounds (2.7–4.5 kg), 46-size 3D airplanes up to 7 pounds (3.2 kg), or models requiring up to 1700 watts of power. It’s an especially good match for Hangar 9 .60-size warbirds

Features

  • Equivalent to a 60-size glow engine for 6 to 10 lb (2.7 to 4.5 kg) airplanes
  • Ideal for 46-size 3D airplanes up to 7 lb (3.2 kg)
  • Ideal for models requiring up to 1700 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters and mounting hardware
  • External rotor design—6mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation

Specifications

Type: Brushless outrunner
Size: Replacement for 60-size glow engines
Bearings or Bushings: One 6 x 15 x 5mm Bearing, and Two 6 x 12 x 4mm Bearing
Wire Gauge: 14
Recommended Prop Range: 14x8 to 16x10
Voltage: 18.5 to 28.8
RPM/Volt (Kv): 400
Resistance (Ri): .06 ohms
Idle Current (Io): 2.70A @ 10V
Shaft Diameter: 6mm (.24 in)
Overall Length: 62mm (2.40 in)
Weight: 380 g (13.0 oz)
Overall Diameter: 50mm (2.00 in)
Diameter: 50mm (2 in)
Length: 62mm (2.4 in)
Continuous Current: 55A
Maximum Burst Current: 65A (15 sec)
Cells: 16–24 Ni-MH/Ni-Cd or 5–7S Li-Po
Speed Control: 60A brushless


More Information
Part # EFLM4060A
Brand E-flite
Brush Type Brushless
KV Rating 0-500
Runner Type Outrunner
Sensor Type Sensorless
Vehicle Type Air
