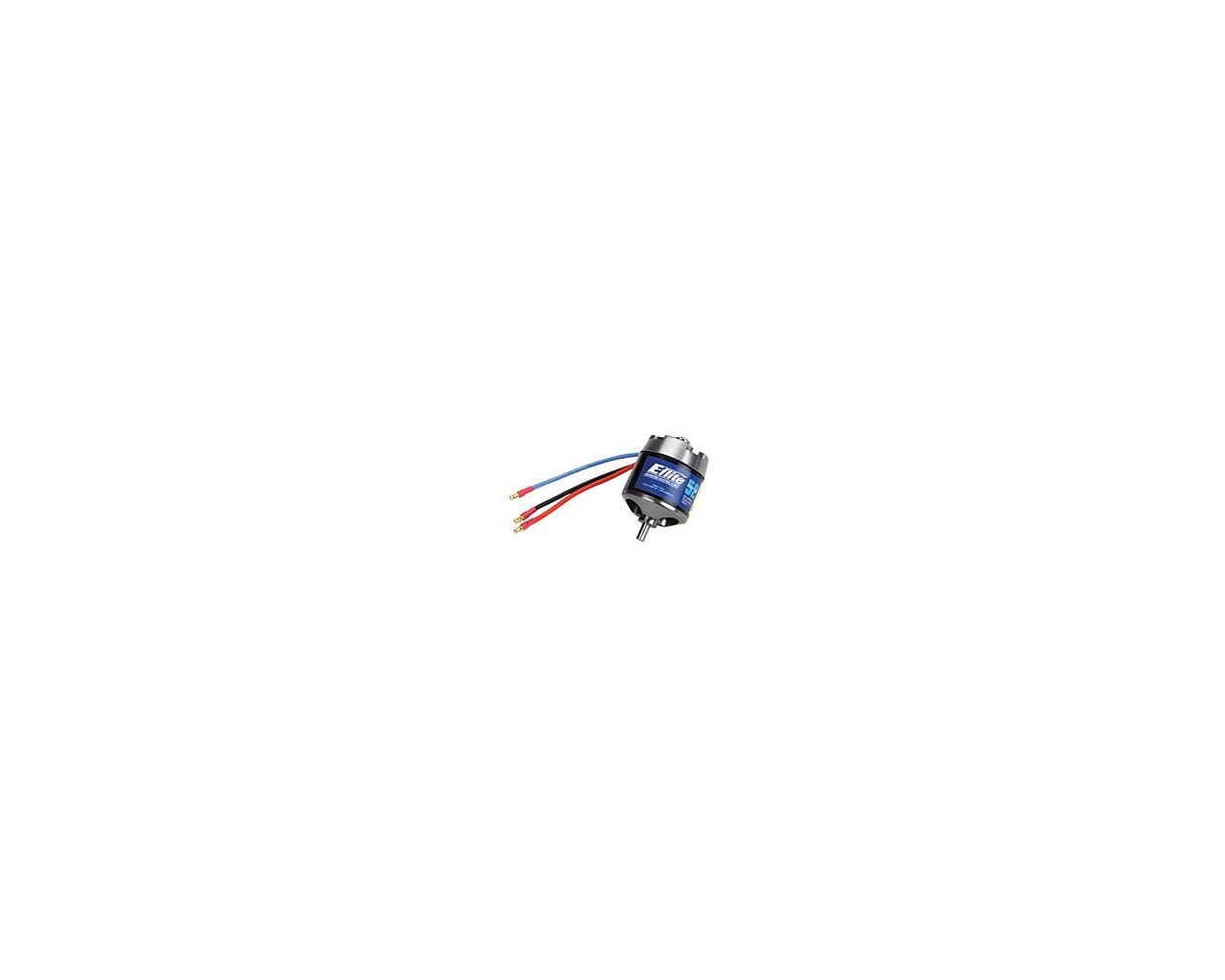

Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power. The Power 52 is an especially good match for the Hangar 9 Katana 50
Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
Ideal for models requiring up to 1650 watts of power
Capable of up to 65-Amp continuous current using 4S-6S Li-Po packs
Includes mount, prop adapters and mounting hardware
Quiet, lightweight operation
External rotor design 6mm shaft can easily be reversed for alternative motor installations
High-quality construction with ball bearings and hardened steel shaft
Slotted 14-pole outrunner design
Specifications
Type: Brushless Outrunner Size: Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine Recommended Prop Range: 4S: 14 x 7 - 15 x 8; 5S: 13 x 8 - 15 x 7; 6S: 11 x 10 - 12 x 8 Voltage: 14.8V-22.2V RPM/Volt (Kv): 590 Resistance (Ri): 0.016Ω Idle Current (Io): 2.3A @ 18.5V Continuous Current: 65A Maximum Burst Current: 75A Cells: 14-20 Ni-MH/Ni-Cd or 4-6S Li-Po Speed Control: 80-Amp Weight: 12.2 oz (346 g) Overall Diameter: 2.00 in (50mm) Shaft Diameter: 6mm Shaft Length: 3.1 in (80mm)
