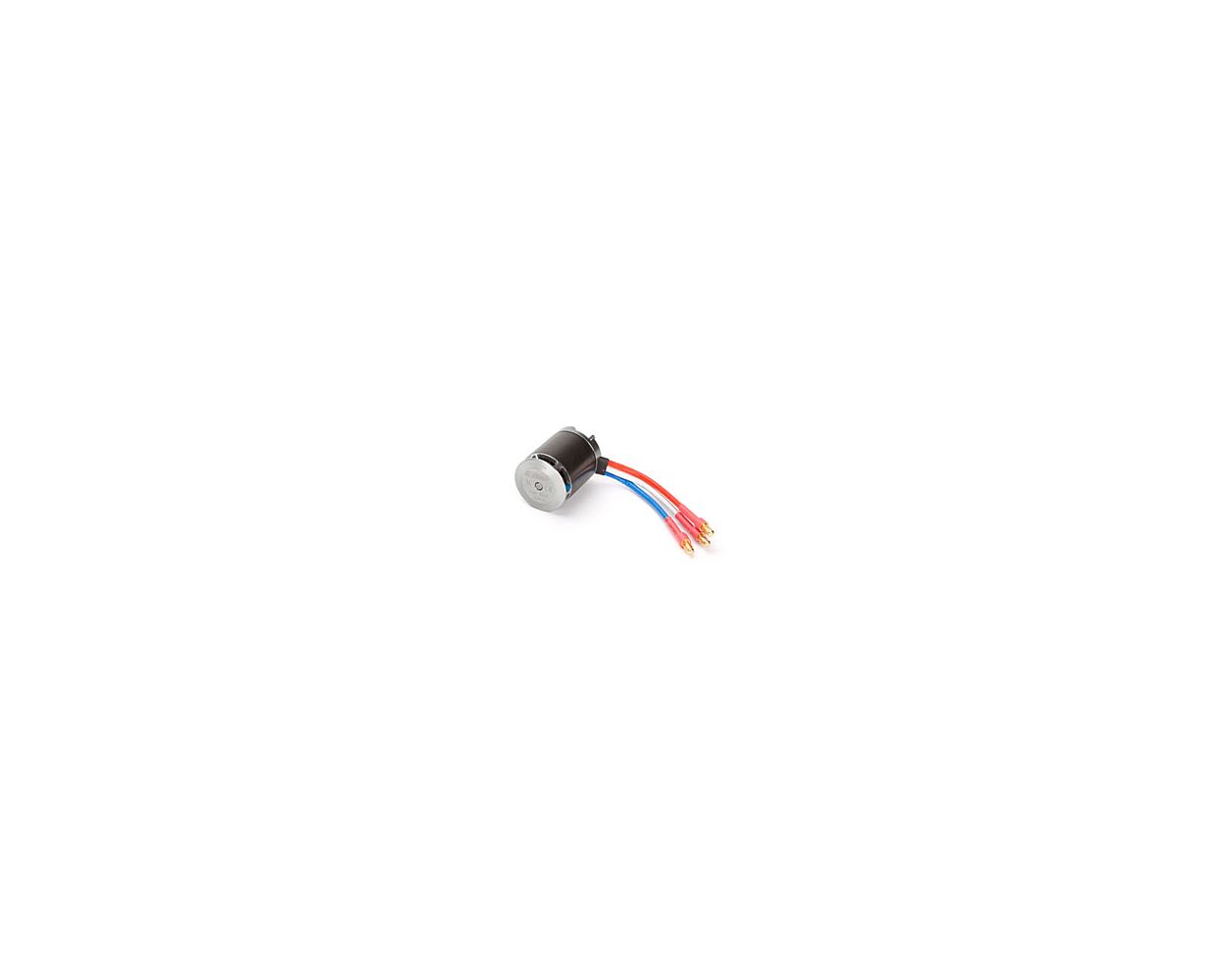

E-flite Heli 450 Brushless Outrunner Motor 3600Kv

$72.18
In Stock
SKU
605482033272

E-flite High-Performance Heli Motors - Ideal for sport and 3D flying, these E-flite brushless motors are specially designed for maximum efficiency and high performance. Available in sizes to suit 450, 550, 600 and 700-class helicopters, each is constructed with high-quality sealed bearings, hardened main shaft and an integrated air flow cooling system to promote long life. These extremely quiet and lightweight motors also feature two hardware mount locations to fit a wide selection of helicopters and make installation easy.

Features

  • Designed for maximum efficient performance for 450-class helicopters
  • High-quality construction with sealed bearings and hardened main shaft
  • Dual mounting pattern to fit a wide selection of helicopters
  • Internal cooling design
  • Extremely quiet and lightweight
  • Slotted 6-pole motor design

Specifications

Type: Brushless Outrunner
Size: Heli 450
Bearings or Bushings: Bearing
Voltage: 11.1V
RPM/Volt (Kv): 3600Kv
Resistance (Ri): 0.0195Ω
Idle Current (Io): 3.5A @ 10V
Continuous Current: 40A
Maximum Burst Current: 55A
Cells: 3S Li-Po
Speed Control: 40 to 60-Amp
Weight: 2.90 oz (82.0 g)
Overall Diameter: 1.10 in (28.0mm)
Shaft Diameter: 0.125 in (3.17mm)
Shaft Length: 2.15 in (54.0mm)
Overall Length: 1.55 in (39.0mm)

More Information
Part # EFLM60450A
Brand E-flite
Brush Type Brushless
KV Rating 3001-6000
Runner Type Outrunner
Sensor Type Sensorless
Vehicle Type Air
