Castle 1/10 Mamba Max Pro NC1406 4600kV System

FEATURES

ESC;

• ROAR legal for 1/10 scale applications
• Handles up to 6S LiPo input
• Switching BEC provides power for servo and receiver all the way to 6S
• Profiles can be custom designed on a PC with the Castle Link
• PC programming software (software not included, can be
• downloaded for free from Castle's website, voucher is included for
• free Castle Link Programmer)
• Infinitely adjustable throttle and brake curves with timing advance
• Punch Control allows dialing in horsepower where needed
• Brake Strength allows straight tracking under hard braking
• Drag Brake helps entry into corners
• Start Power for smooth launches

Motor;

• 540 size can replaces many stock Brushed motors
• Roughly equivalent in top speed to a very good 12-turn with a 6-cell (7.2v)battery
• Four pole

requires battery connectos

INCLUDES

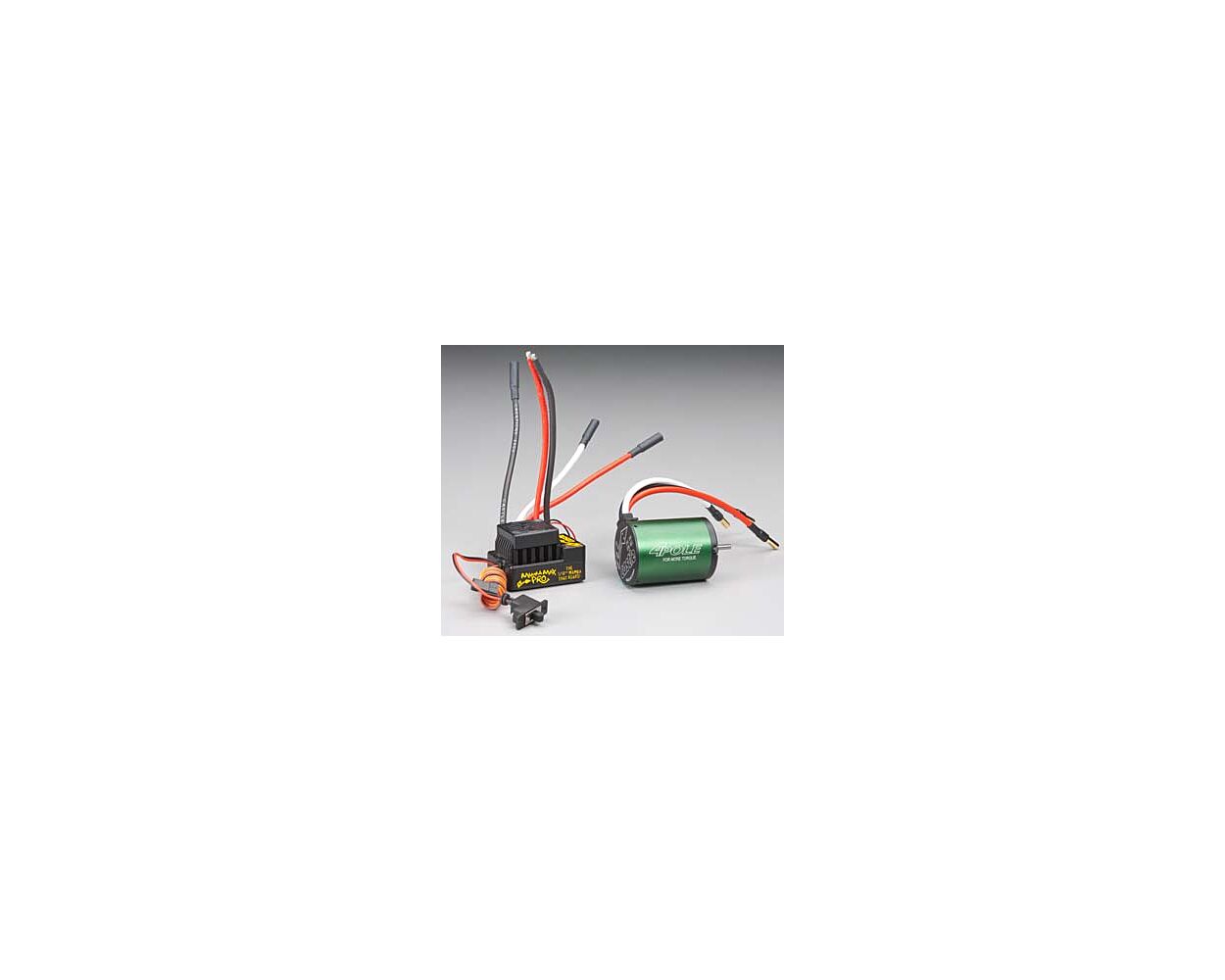

Castle Creations Mamba Max Pro Electronic Speed Control, 4600kV motor

SPECIFICATIONS

Electronic Speed Control-

Cells: 6-12 NiCd/NiMH, 2-6 cell LiPo
Brake: Proportional
Reversible: Yes, with lockout
Low Voltage Cut-off: Programmable
Size: 45.5mm x 36.5 x 21.5mm (1.79"x1.44"x0.85")
Weight: 81g (2.8oz)
4600 kV Motor;
Input Voltage: 12 cell NiCd/NiMH max OR 3S LiPo max
Size 1.4" (35.5mm) diameter, 1.7" (43mm) length
Weight: 6.5oz (185g)
Shaft Diameter: 1/8" (3.2mm)
Connector Type: 4mm gold
Motor Wire Length: 4" (101mm) OK to shorten
