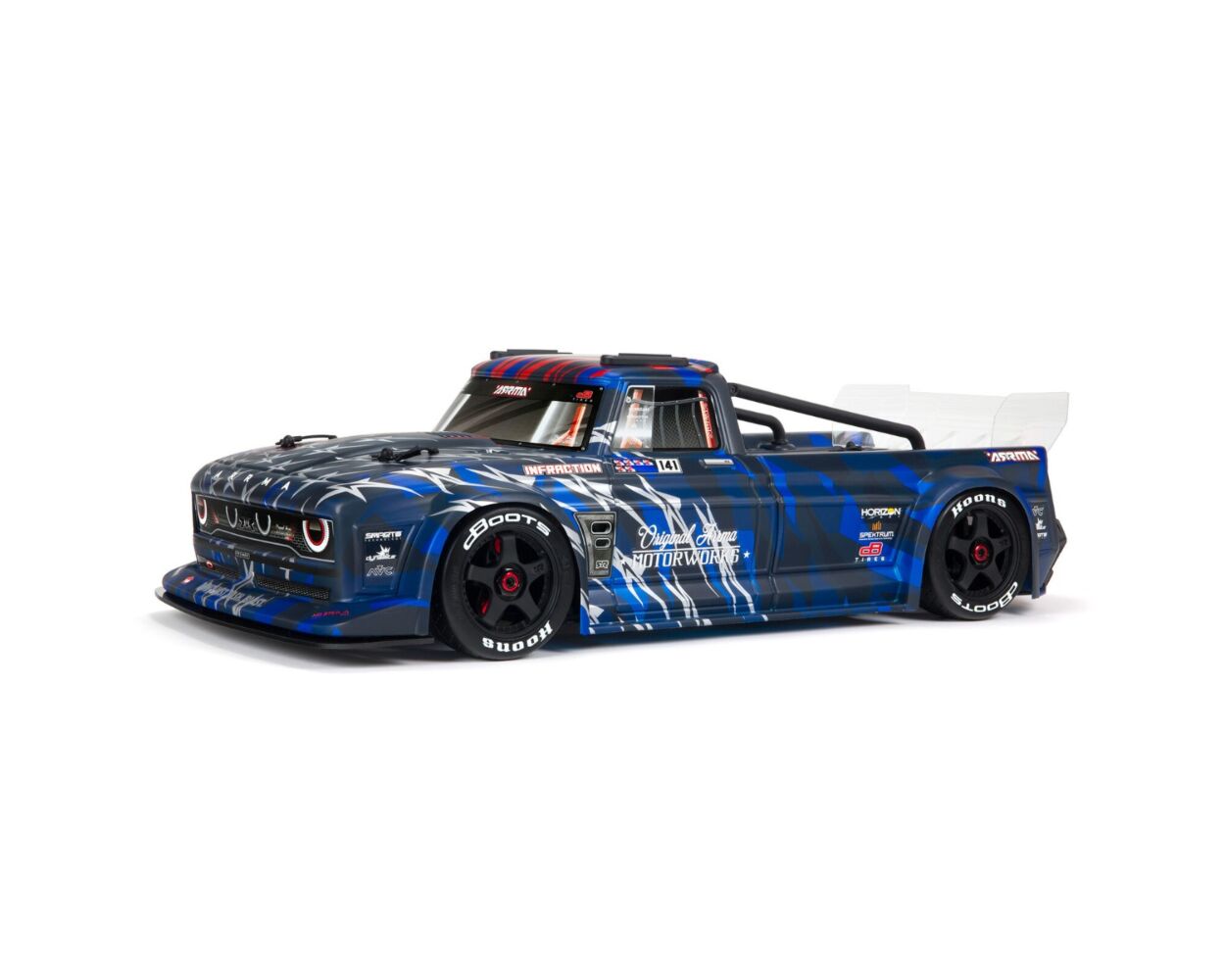

ARRMA 1/7 INFRACTION 6S BLX All-Road Truck Blue

Another feature new to the INFRACTION™ 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum® SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3™ transmitter for thrilling drifting, "hooning" and stunt action.

With its 4X4 traction, you can run the INFRACTION™ 6S BLX 4WD on all roads, in all conditions — over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice — while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.

To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots® Hoons™ all-road tires keep their grip on the surface to pour on speed or stop on a dime.

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the center line transmission RPM, reducing the center drive shaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a center brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers.

ARRMA® has equipped the ready-to-run INFRACTION™ 6S BLX 4WD with the 3-channel Spektrum® DX3™ radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle's brushless power system also features Spektrum® Firma™ Smart components, so it's easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard™ app for iOS or Android, available for free at the App Store or Google Play.

REQUIREMENTS

Batteries: Two 2S, or two 3S LiPo Batteries (35C 5000mAh minimum,
100C 5000mAh recommended)
Battery Charger and Charging Bag: Compatible with selected batteries
AA Batteries: Four for transmitter

Additional Features:

Chassis: 0.12 (3mm) thick 6061 T-6 aluminum with front splitter
and a rear diffuser that balances downforce
Drive: Four wheel with steel driveshafts
Differentials: Three oil-filled metal gear
Brushless Motor: Spektrum Firma 4074 non-sensored
Electronic Speed Control: Spektrum Firma 150A Smart, waterproof
with IC5 battery connectors (EC5 compatible)
Rear Brake: Metal pads and discs, vented, Spektrum SPMS650 brake
servo, driver controls handbrake from a switch on transmitter for
thrilling drifting, hooning and stunt action
Radio: Spektrum DX3 2.4GHz DSMR 3-ch with voltage indicator for
Spektrum Smart batteries, SR6110AT receiver features AVC
(Active Vehicle Control) for high-speed stability, Bluetooth
connection to mobile devices allows allows real-time telemetry
viewing including ESC temperature, receiver (BEC) voltage, drive
pack voltage and motor RPM, requires downloading free Spektrumd
dashboard app
Steering Servo: ARRMA ADS-15M waterproof, metal geared, 195 oz-in
(15 kg-cm) torque 6V, 25 tooth spline
Shocks: Aluminum body, oil-filled
Shock Towers: Black anodized aluminum
Tires: dBoots Hoons, white firmness compound
Wheels: 5-spoke, 17mm hex, black in color
Body: Trimmed scale truck with matte gloss effect designs and
adjustable wing,
Ball Bearings: Full set, rubber shielded

Specs

• Vehicle:
  Length: 27.36 in (695mm)
  Front Width: 12.13 in (308mm)
  Rear Width: 12.01 in (305mm)
  Height: 7.87 in (200mm)
  Ride Height: 0.59 in (15mm)
  Weight: 11lbs (5kg)
  Front and Rear Spring Rate: 4.7Nmm
  Front Shock Diameter: 3.03 in (77mm)
  Rear Shock Diameter: 3.43 in (87mm)
  Shock Oil Viscosity: 2000cST
  Diff Oil Viscosity: 10k100k10kcST
  Internal Gear Ratio: Front 2.8, Rear 3.21
  Final Gear Ratio: Front 4.60 - 9.90
  Spur Gear: 46T metal
  Pinion Gear: 15T metal installed, 25T high-speed pinion also included
  Torque Split: 5050
  Max Speed: 80+mph (128+kph) with 6S LiPo and high-speed pinion gear
  gear installed
  Max Battery Size: 7.09 x 2.17 x 2.76 in (180 x 55 x 70mm)
  Tire Diameter: 3.94 in (100mm)
  Wheel Bead Diameter: 2.95 in (75mm), 3.27 in (83mm)
  Approximate Assembly Time: Less than an hour
  Experience Level: Intermediate
  Body:
  Length: 27.44 in (697mm)
  Width: 12.2 in (310mm)
  Height: 7.09 in (180mm)
